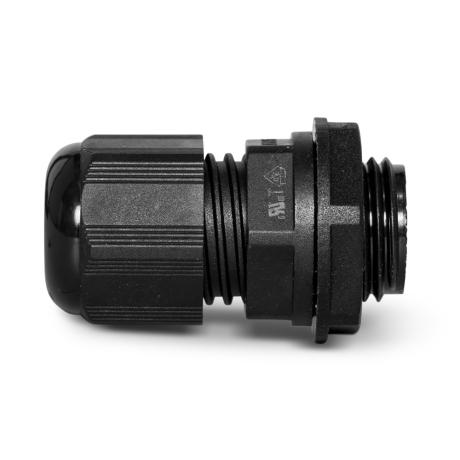

Cable Gland Nylon M16 | IP68 (10 Bar) & IP69 Rated | UV Resistant & Halogen Free | by Wattmaster
The Cable Gland Nylon M16 is designed for high-performance cable sealing with a diameter range of 5-10mm, ensuring IP68 (10 bar) and IP69 ratings for superior water and dust protection. Ideal for industrial and outdoor applications, this gland features a unique O-ring channel for enhanced sealing and is made from UV resistant, halogen-free material, making it safe and durable for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M16 | IP68 (10 Bar) & IP69 Rated | UV Resistant & Halogen Free | by Wattmaster
Brand: Wattmaster
SKU: ALCMG16HP
Alternatively Known As: Nylon Cable Gland M16, High Performance Cable Gland, IP68 Cable Gland, IP69 Cable Gland, Waterproof Cable Gland
Technical Specifications
- Cable Diameter Range: 5-10mm
- Material: Nylon
- Ingress Protection: IP68 (10 bar), IP69
- Approvals: VDE, UL, CSA
- Includes locknut
- UV Resistant
- Halogen Free
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Unique O-Ring Channel for enhanced sealing
- Includes locknut for secure fitting
- UV resistant for outdoor durability
- Halogen free material for safety
- VDE, UL & CSA approved for international standards compliance
- Seal design ensures IP68 (10 bar) and IP69 rating for water and dust ingress protection
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Industrial cable sealing and protection
- Electrical installations requiring high ingress protection
- Outdoor and harsh environment cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces environmental impact in case of fire
- Durable UV resistant design extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Wattmaster Nylon Cable Gland M16 High Performance is available for immediate purchase, ideal for industrial and outdoor electrical cable sealing applications.
