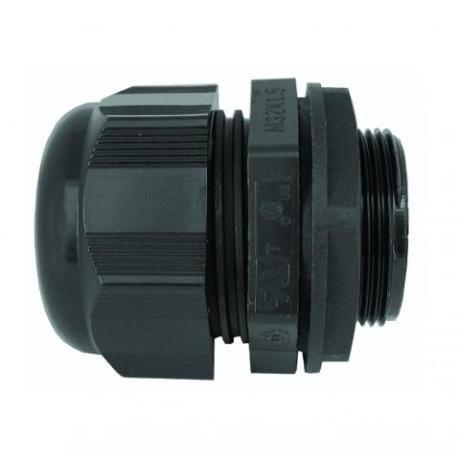

Cable Gland Nylon M20 | IP66/68 Ingress Protection | 10-14mm Cable Diameter | Locknut Included | by Wattmaster
The Cable Gland Nylon M20 is designed for secure cable sealing with a diameter range of 10-14mm, featuring high ingress protection rated IP66/68. Ideal for both indoor and outdoor applications, this durable polyamide gland includes a locknut for secure fitting, ensuring reliable performance in industrial and commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M20 | IP66/68 Ingress Protection | 10-14mm Cable Diameter | Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCMG20
Alternatively Known As: Nylon Cable Gland M20, IP68 Cable Gland, Waterproof Cable Gland, Polyamide Cable Gland
Technical Specifications
- Cable Diameter: 10-14mm
- Ingress Protection: IP66/68 (5 Bar)
- Material: Polyamide (Nylon)
- Seal Material: Chloroprene
- Locknut: Supplied as standard
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for cable diameters 10-14mm
- Provides a secure seal on cable sheath
- UV protected for outdoor durability
- Includes locknut for secure fitting
- High ingress protection rated IP66/68 (5 Bar)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing applications
- Electrical installations requiring dust and water ingress protection
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV protected material extends product life reducing waste
- Seals cables to prevent ingress of dust and water, protecting electrical systems and reducing maintenance
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Nylon Cable Gland M20 is available for immediate purchase, ideal for secure and weatherproof cable installations in industrial and commercial environments.
