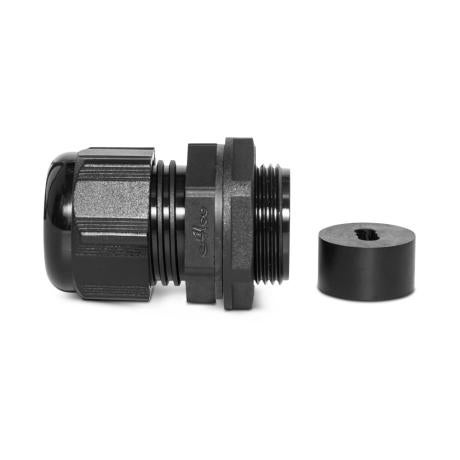

Cable Gland Nylon M20 for TPS Cable 1-1.5mm² | IP66/68 Rated | UV Protected | by Wattmaster
The Cable Gland Nylon M20 is designed for TPS cables sized 1-1.5mm², providing a secure seal to prevent dust and water ingress. With an IP66/68 rating and UV protection, it's perfect for both indoor and outdoor electrical installations. Ideal for industrial and commercial applications, this cable gland ensures durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Polyamide (nylon)
- Seal Material: Chloroprene
- Cable Size Compatibility: 1.0-1.5mm² TPS cable
- Ingress Protection: IP66/68 rated (5 Bar)
- Locknut: Supplied as standard
- UV Protected for outdoor use
- Dimensions (H x L x W): 30mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for TPS cables sized 1.0-1.5mm²
- Provides a secure seal on cable sheath to prevent ingress of dust and water
- UV protected for outdoor durability
- Includes locknut for secure fitting
- High ingress protection rated IP66/68 (5 Bar)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing for TPS cables 1-1.5mm²
- Electrical installations requiring IP66/68 rated cable glands
- Industrial and commercial electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- UV protection extends product life, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Cable Gland Nylon M20 for TPS Cable 1-1.5mm² IP66/68 with Locknut is available for immediate purchase, ideal for secure and weatherproof cable installations.
