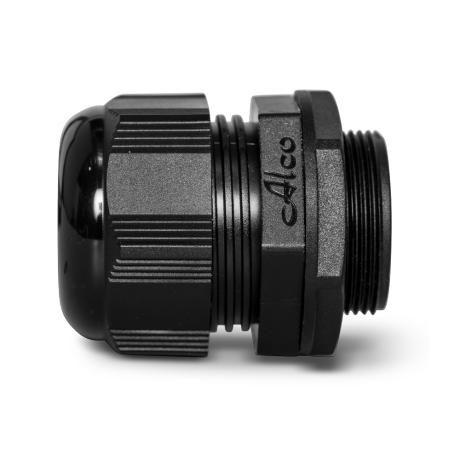

Cable Gland Nylon M32 | 18-25mm Cable Diameter | IP66/68 Rated | UV Protected | @Each by Wattmaster
The Cable Gland Nylon M32 is designed for cable diameters of 18-25mm, providing IP66/68 protection against dust and water ingress. Ideal for both indoor and outdoor electrical installations, this durable polyamide gland includes a locknut for secure fitting and features UV protection for long-lasting performance. Perfect for industrial and commercial applications, it ensures effective sealing and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M32 | 18-25mm Cable Diameter | IP66/68 Rated | UV Protected | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCMG32-NS
Alternatively Known As: Nylon Cable Gland M32, Cable Gland 18-25mm, IP68 Cable Gland, Polyamide Cable Gland
Technical Specifications
- Cable Diameter Range: 18-25mm
- Ingress Protection: IP66/68 (5 Bar)
- Material: Polyamide (Nylon)
- Seal Material: Chloroprene
- Locknut: Included
- UV Protection: Yes
- No fibre washer included
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for cable diameters 18-25mm
- IP66/68 rated for dust and water ingress protection up to 5 Bar pressure
- UV protected for outdoor durability
- Includes locknut for secure installation
- Seal made of chloroprene for effective cable sheath sealing
- Constructed from durable polyamide material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing applications
- Electrical installations requiring cable protection and ingress sealing
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV resistant material reduces need for frequent replacements
- Seals cables effectively to prevent environmental contamination and damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Nylon Cable Gland M32 is available for immediate purchase, ideal for secure and weatherproof cable installations in both indoor and outdoor environments.
