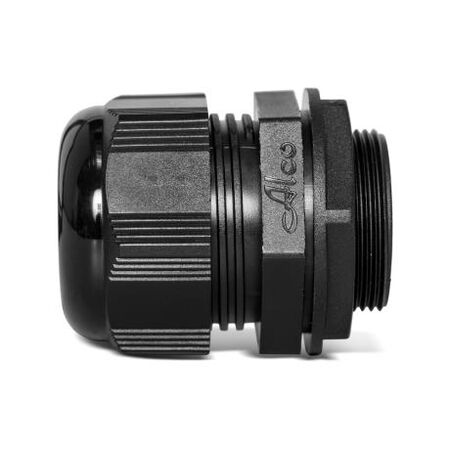

Cable Gland Nylon M32 | IP66/68 Ingress Protection | 18-25mm Cable Diameter | Locknut Included | by Wattmaster
The Cable Gland Nylon M32 is designed for secure cable sealing with an ingress protection rating of IP66/68, making it ideal for both indoor and outdoor electrical installations. Accommodating cable diameters of 18-25mm, this durable polyamide gland includes a locknut for added security and UV protection for long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M32 | IP66/68 Ingress Protection | 18-25mm Cable Diameter | Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCMG32
Alternatively Known As: Nylon Cable Gland M32, IP68 Cable Gland, Waterproof Cable Gland, Polyamide Cable Gland
Technical Specifications
- Material: Polyamide (Nylon)
- Seal Material: Chloroprene
- Cable Diameter Range: 18-25mm
- Ingress Protection: IP66/68 (5 Bar)
- Locknut: Supplied as standard
- UV Protection: Yes
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for cable diameters 18-25mm
- Provides a secure seal on cable sheath
- UV protected for outdoor durability
- Includes locknut as standard
- High ingress protection rated IP66/68 (5 Bar)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing applications
- Electrical installations requiring cable protection and sealing
- Industrial and commercial wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV protected material extends product life reducing waste
- Seals cables to prevent ingress of dust and water, protecting electrical systems and reducing maintenance
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Nylon Cable Gland M32 is available for immediate purchase, ideal for secure cable sealing in both indoor and outdoor electrical installations.
