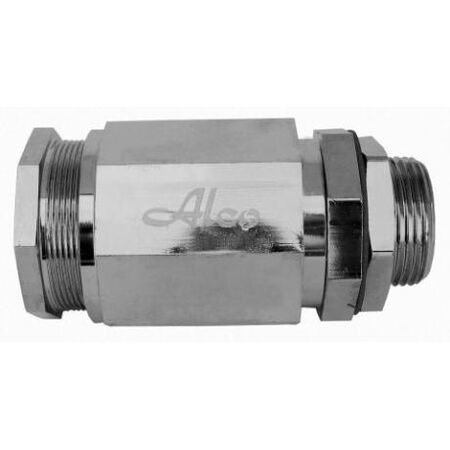

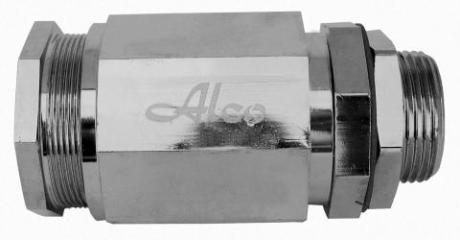

Cable Gland Short Body Weatherproof | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
The Cable Gland Short Body Weatherproof is designed for armoured cables with a diameter range of 10.5-15.5mm, featuring a robust IP66/68 ingress protection rating. Ideal for both indoor and outdoor electrical installations, this gland ensures a secure seal on cable sheaths, making it perfect for industrial, commercial, and residential applications. Built from durable brass with nickel plating, it withstands temperatures from -20°C to +80°C, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Short Body Weatherproof | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW20SB
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, Short Body Cable Gland
Technical Specifications
- Cable Diameter Range: 10.5-15.5mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68
- Temperature Range: –20°C to +80°C
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 30mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Weatherproof armoured cable gland
- Temperature Range: –20°C to +80°C
- Provides seal on cable sheath
- Degree of protection against ingress of water IP66/68
- Locknut supplied as standard
- Seal made of TPE
- Material: Brass, Nickel Plated
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Suitable for indoor and outdoor use
- Used for sealing and securing armoured cables in electrical installations
- Ideal for industrial, commercial, and residential electrical wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extends product life, reducing waste
- Weatherproof design minimizes risk of electrical faults and environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Cable Gland Short Body Weatherproof Armoured Cable 10.5-15.5mm is available for immediate purchase, ideal for secure and weatherproof electrical cable installations.
