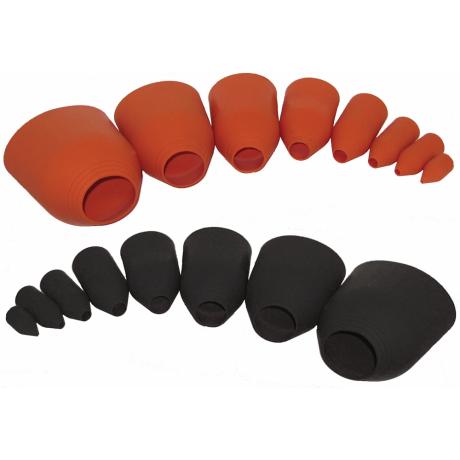

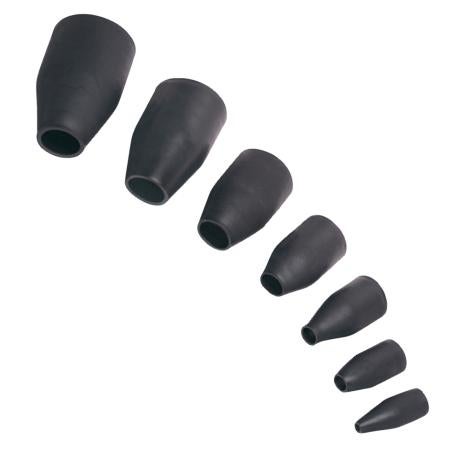

Cable Gland Shroud 10-29mm Silicone Black | UV & Oil Resistant | Halogen Free | by Wattmaster
The Cable Gland Shroud 10-29mm Silicone Black is designed to provide superior protection for cable glands, enhancing their IP rating. Made from halogen-free silicone, this shroud is UV and oil resistant, making it ideal for both indoor and outdoor applications. Perfect for industrial and commercial electrical installations, it ensures durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Shroud 10-29mm Silicone Black | UV & Oil Resistant | Halogen Free | by Wattmaster
Brand: Wattmaster
SKU: ALCSG2SB
Alternatively Known As: Cable Gland Cover, Cable Gland Protector, Silicone Cable Gland Shroud, Cable Gland Sleeve
Technical Specifications
- Material: Silicone
- Size Range: Fits cable glands 10-29mm
- Colour: Black
- Halogen Free: Yes
- UV Resistant: Yes
- Oil and Chemical Resistant: Yes
- Compliance: ROHS compliant
- Dimensions (H x L x W): 40mm x 100mm x 40mm
- Weight: 0.1 kg
Key Features
- Provides additional protection to cable glands to improve IP rating
- Compatible with all types of polymeric jacketed cables
- End of shroud can be cut to required size for custom fit
- Acts as an extra guard against corrosion and weather conditions
- Halogen free with low smoke and corrosive acid gas emission
- UV resistant for outdoor durability
- Oil and chemical resistant for harsh environments
- Easier installation with better impact absorption
- ROHS compliant, free from lead, mercury, cadmium, and chromium
- Compatible with all Alco cable gland ranges
Professional Installation Requirements
- Installation is straightforward but should be performed by a qualified electrician to ensure proper fit and compliance with electrical safety standards.
Applications
- Protection of cable glands in industrial and commercial electrical installations
- Suitable for use with polymeric jacketed cables in harsh environments
- Ideal for outdoor and indoor cable gland protection to enhance IP rating
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- ROHS compliant ensuring no hazardous substances are used
- Durable and reusable, reducing waste and replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Cable Gland Shroud 10-29mm Silicone Black - Soft is available now for immediate purchase. Ideal for protecting cable glands in industrial, commercial, and outdoor electrical installations.
