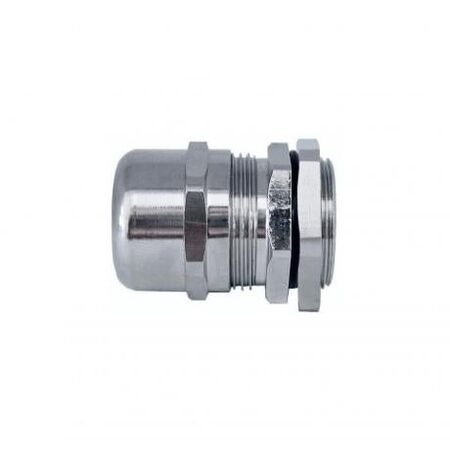

Cable Gland Stainless Steel 316 M63 | 34-44mm Cable Diameter | 15mm Thread Length | Weatherproof Design | by Wattmaster
The Cable Gland Stainless Steel 316 M63 is designed for unarmoured cables with a diameter range of 34-44mm, featuring a 15mm thread length. Ideal for both indoor and outdoor applications, this weatherproof gland ensures a secure seal on cable sheaths, providing durability and corrosion resistance. Perfect for industrial and commercial electrical installations, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Stainless Steel 316 M63 | 34-44mm Cable Diameter | 15mm Thread Length | Weatherproof Design | by Wattmaster
Brand: Wattmaster
SKU: ALCBRGM63-SS
Alternatively Known As: SS316 Cable Gland M63, Stainless Steel Cable Gland 34-44mm, Weatherproof Cable Gland M63
Technical Specifications
- Material: Stainless Steel 316
- Cable Diameter Range: 34-44mm
- Thread Length: 15mm
- Seal Material: Neoprene
- O Ring Material: NBR
- Temperature Range: –40°C to +100°C
- Locknut: Supplied as standard
- Dimensions (H x L x W): 15mm x 63mm x 63mm
- Weight: 0.3 kg
Key Features
- General purpose stainless steel glands for unarmoured cable
- Provides seal on cable sheath
- Locknut supplied as standard
- Made from stainless steel (316) for corrosion resistance
- Suitable for indoor or outdoor use
- Seal made of Neoprene
- O Ring made of NBR
- Temperature range from –40°C to +100°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Industrial and commercial electrical installations
- Indoor and outdoor cable sealing
- Weatherproof cable gland applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste
- Weatherproof design protects cables, enhancing longevity and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Stainless Steel 316 M63 Cable Gland is available for immediate purchase, ideal for industrial and commercial electrical installations requiring durable and weatherproof cable sealing.
