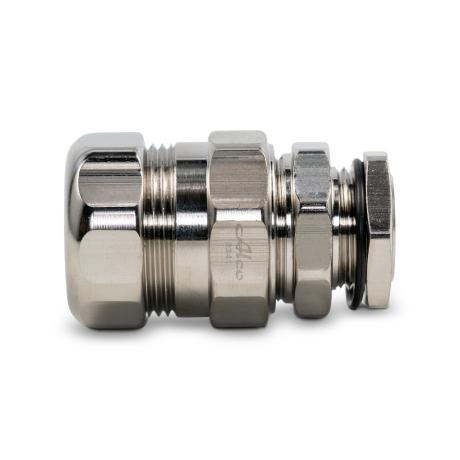

Cable Gland Weatherproof Armoured | 14-20mm Diameter | IP66/68 Rated | Brass & Nickel Plated | by Wattmaster

BRAND: Alco
SKU: ALCAW20
$32.70 List price: $39.50
+ −
30 Days Return Delivery Options
The Cable Gland Weatherproof Armoured is designed for sealing armoured cables with a diameter range of 14-20mm. Ideal for both indoor and outdoor electrical installations, it features a durable brass and nickel-plated construction, ensuring a reliable seal and protection against water ingress (IP66/68). Perfect for industrial, commercial, and residential applications, this cable gland guarantees compliance with AS 1939-1990 standards.

Product Name/Title: Cable Gland Weatherproof Armoured | 14-20mm Diameter | IP66/68 Rated | Brass & Nickel Plated | by Wattmaster

Brand: Wattmaster

SKU: ALCAW20

Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, Nickel Plated Cable Gland

Technical Specifications
  • Cable Diameter Range: 14-20mm
  • Thread Length: 10mm
  • Material: Brass, Nickel Plated
  • Seal Material: TPE
  • Ingress Protection: IP66/68
  • Temperature Range: –20°C to +80°C
  • Compliance: AS 1939-1990
  • Dimensions (H x L x W): 30mm x 40mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Weatherproof armoured cable gland
  • Temperature Range: –20°C to +80°C
  • Provides seal on cable sheath
  • Degree of protection against ingress of water IP66/68
  • Locknut supplied as standard
  • Seal made of TPE
  • Material: Brass, Nickel Plated
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
  • Suitable for indoor and outdoor use
  • Ideal for sealing armoured cables in electrical installations
  • Used in industrial, commercial, and residential electrical wiring
Standards & Compliance
  • Complies with AS 1939-1990 for cable glands
Environmental Benefits
  • Durable brass and nickel plating extends product life reducing waste
  • Weatherproof design minimizes risk of electrical faults and environmental damage
Warranty Information

Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.

Available Now

Available for immediate purchase, ideal for electrical installations requiring weatherproof sealing of armoured cables.
