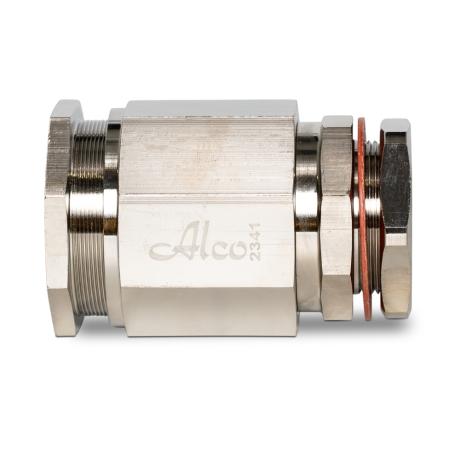

Cable Gland Weatherproof Armoured | 33-42mm Diameter | IP66/68 Rated | Brass Construction | @Each by Wattmaster
The Cable Gland Weatherproof Armoured is designed for secure sealing of cables with a diameter range of 33-42mm. Ideal for both indoor and outdoor electrical installations, it features a robust IP66/68 rating for maximum protection against water ingress. Made from durable brass with nickel plating, this gland ensures long-lasting performance in harsh environments, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured | 33-42mm Diameter | IP66/68 Rated | Brass Construction | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW40
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP66 Cable Gland
Technical Specifications
- Cable Diameter Range: 33-42mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Temperature Range: –20°C to +80°C
- Ingress Protection: IP66/68
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 50mm x 60mm x 42mm
- Weight: 0.15 kg
Key Features
- Weatherproof design suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath
- High degree of protection with IP66/68 rating
- Locknut supplied as standard for secure fitting
- Made from durable brass with nickel plating
- Seal made from TPE for effective waterproofing
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with safety standards.
Applications
- Suitable for indoor and outdoor electrical installations
- Used for sealing and securing armoured cables in industrial and commercial environments
- Protects cable entry points from water ingress and mechanical strain
Standards & Compliance
- Complies with AS 1939-1990 for cable glands
Environmental Benefits
- Durable brass construction extends product life reducing waste
- Weatherproof sealing prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland 33-42mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
