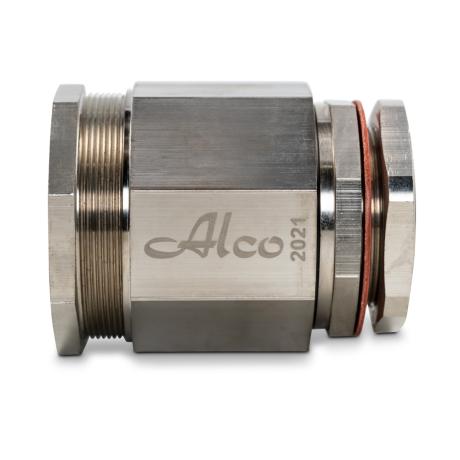

Cable Gland Weatherproof Armoured | 49-56mm Diameter | IP66/68 Rated | Brass with Nickel Plating | @Each by Wattmaster
The Cable Gland Weatherproof Armoured is designed for cables with a diameter of 49-56mm, providing a secure seal and high protection with an IP66/68 rating. Ideal for both indoor and outdoor use, this durable brass gland ensures reliable sealing in harsh environments, making it perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured | 49-56mm Diameter | IP66/68 Rated | Brass with Nickel Plating | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW50L
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP66 Cable Gland
Technical Specifications
- Cable Diameter Range: 49-56mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Temperature Range: –20°C to +80°C
- Ingress Protection: IP66/68
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 30mm x 50mm x 56mm
- Weight: 0.15 kg
Key Features
- Weatherproof design suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath
- High degree of protection with IP66/68 rating
- Locknut supplied as standard for secure fitting
- Made from durable brass with nickel plating
- Seal made from TPE for effective sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Suitable for indoor and outdoor use
- Ideal for sealing armoured cables in industrial and commercial electrical installations
- Protects cable entry points from water ingress and environmental exposure
Standards & Compliance
- Complies with AS 1939-1990 for cable glands
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Weatherproof sealing helps prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland 49-56mm is available for immediate purchase, ideal for securing and protecting armoured cables in both indoor and outdoor electrical installations.
