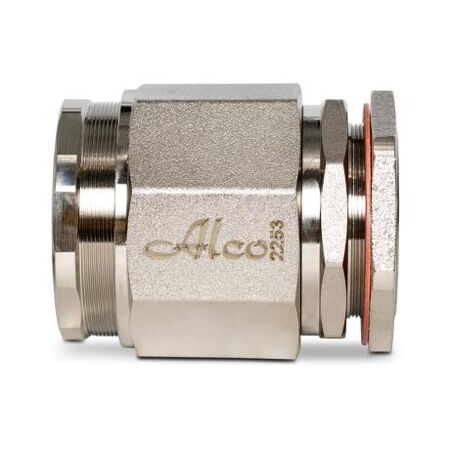

Cable Gland Weatherproof Armoured | 63-75mm Diameter | IP66/68 Rated | Brass Construction | @Each by Wattmaster
The Cable Gland Weatherproof Armoured is designed for 63-75mm diameter cables, providing a secure seal to prevent water ingress in harsh environments. With an IP66/68 rating and durable brass construction, it's perfect for industrial and commercial electrical installations, ensuring reliable performance and protection against environmental exposure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured | 63-75mm Diameter | IP66/68 Rated | Brass Construction | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW75
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 63-75mm
- Thread Length: 19mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Temperature Range: –20°C to +80°C
- Ingress Protection: IP66/68
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 60mm x 75mm
- Weight: 0.3 kg
Key Features
- Weatherproof design suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath to prevent water ingress
- High degree of protection with IP66/68 rating
- Constructed from durable brass with nickel plating for corrosion resistance
- Includes locknut and TPE seal for reliable installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Suitable for indoor and outdoor use
- Ideal for sealing armoured cables in industrial and commercial electrical installations
- Protects cable entry points from water ingress and environmental exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces the need for frequent replacements
- Weatherproof sealing helps prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland for 63-75mm diameter cables is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust weatherproof cable sealing.
