Cable Gland Weatherproof Armoured | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster

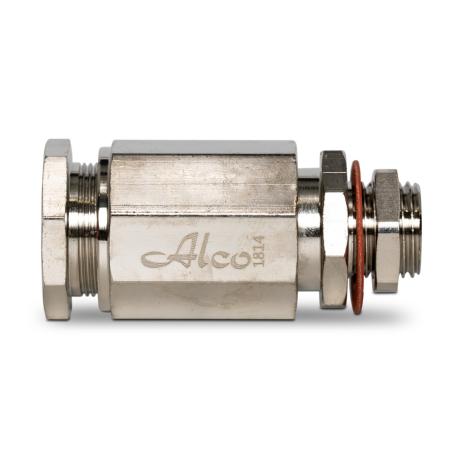

The Cable Gland Weatherproof Armoured is designed for cables with a diameter of 10.5-15.5mm, featuring a robust IP66/68 rating for superior protection against water and dust. Made from durable brass with nickel plating, it ensures long-lasting performance in harsh environments. Ideal for both indoor and outdoor electrical installations, this gland provides a secure seal to prevent cable damage and contamination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW16
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 10.5-15.5mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 30mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Weatherproof design suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath to prevent ingress of water and dust
- High degree of protection with IP66/68 rating
- Made from durable brass with nickel plating for corrosion resistance
- Includes locknut and TPE seal for reliable cable retention
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor electrical installations
- Armoured cable sealing and protection
- Industrial and commercial wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Weatherproof sealing helps prevent environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland for 10.5-15.5mm diameter cables is available for immediate purchase, ideal for secure and weatherproof cable installations.
