Cable Gland Weatherproof Armoured Cable | IP66/68 Rated | Brass & Nickel Plated | 51-64mm Diameter | by Wattmaster

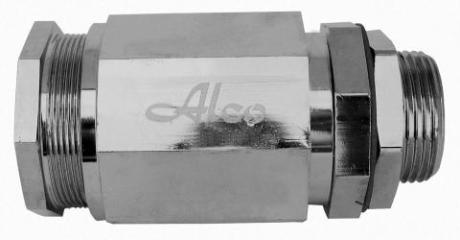

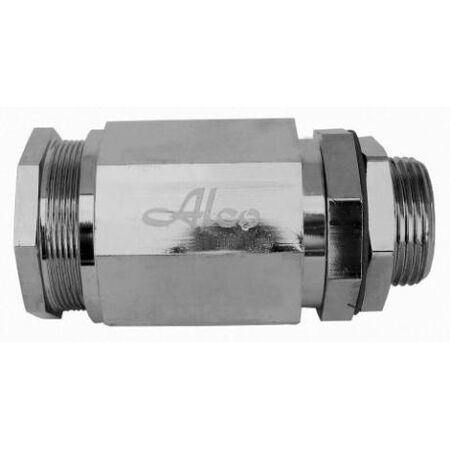

The Cable Gland Weatherproof Armoured Cable is designed for secure sealing of armoured cables with a diameter range of 51-64mm. Featuring a robust IP66/68 rating, this gland is perfect for both indoor and outdoor electrical installations, ensuring protection against water ingress. Made from durable brass with nickel plating, it includes a TPE seal and locknut for enhanced sealing, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured Cable | IP66/68 Rated | Brass & Nickel Plated | 51-64mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCAW63
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 51.0-64.0 mm
- Thread Length: 19 mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 60mm x 64mm
- Weight: 0.15 kg
Key Features
- Weatherproof design suitable for harsh environments
- Provides a secure seal on armoured cable sheath
- High degree of protection against water ingress (IP66/68)
- Temperature range from –20°C to +80°C
- Includes locknut and TPE seal for enhanced sealing
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Indoor and outdoor electrical installations
- Armoured cable sealing and protection
- Industrial and commercial wiring systems
Standards & Compliance
- Complies with AS/NZS 1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extends product life reducing waste
- Weatherproof sealing reduces risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial and commercial armoured cable installations requiring weatherproof sealing.
