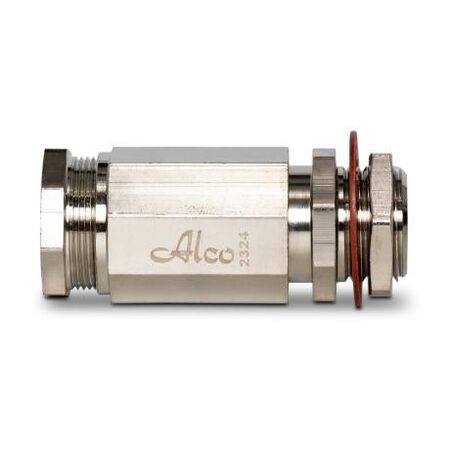

Cable Gland Weatherproof Armoured | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
The Cable Gland Weatherproof Armoured is designed for secure sealing of cables with a diameter range of 14.7-17mm. Ideal for both indoor and outdoor electrical installations, it features a high ingress protection rating of IP66/68 and is made from durable brass with nickel plating. This gland ensures effective waterproofing and is perfect for industrial and commercial wiring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Weatherproof Armoured | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW20MR
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP66 Cable Gland
Technical Specifications
- Cable Diameter Range: 14.7-17.0mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Weatherproof design suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath
- High ingress protection rating of IP66/68
- Includes locknut for secure fitting
- Made from durable brass with nickel plating
- Seal made from TPE for effective waterproofing
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor electrical installations
- Armoured cable sealing and protection
- Industrial and commercial wiring systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Weatherproof sealing prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland is available for immediate purchase, ideal for securing and protecting armoured cables in both indoor and outdoor electrical installations.
