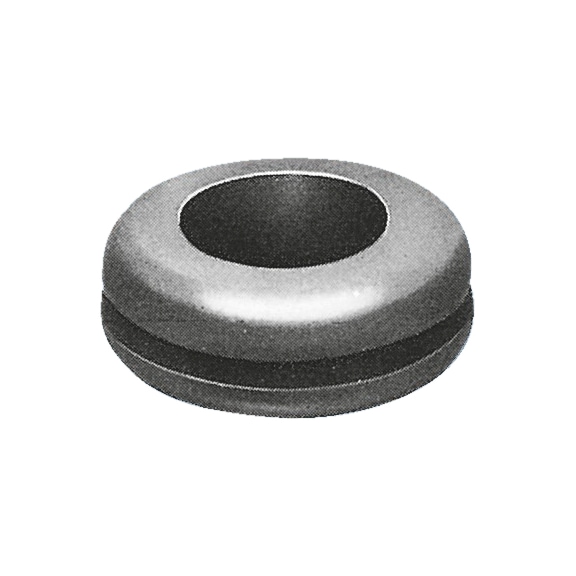

Cable Grommet Double-Sided | 21mm Internal Diameter | UV Resistant & RoHS Compliant | by Wurth
Cable grommet double-sided with a 21mm internal diameter and UV resistance—perfect for effective cable management in electrical installations. Made from durable EPDM rubber, this grommet is ideal for automotive wiring harnesses and industrial machinery, ensuring long-lasting protection against weathering and chemicals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Grommet Double-Sided | 21mm Internal Diameter | UV Resistant & RoHS Compliant | by Wurth
Brand: Wurth
SKU: 5616665
Alternatively Known As: Cable protector grommet, wire grommet, cable entry grommet, rubber cable grommet, double-sided cable grommet
Technical Specifications
- Internal diameter (d): 21 mm
- Bore hole (D1): 31 mm
- Outer diameter (D): 38 mm
- Installation thickness (h1): 1.5 mm
- Height (H): 11 mm
- Material: EPDM (ethylene propylene diene monomer rubber)
- Ultraviolet resistance: Yes
- Silicone-free: Yes
- RoHS-compliant: Yes
- ISO standard: 3302
- Temperature resistance: -40 to 120 °C
- Dimensions (H x L x W): 11mm x 38mm x 38mm
- Weight: 0.02 kg
Key Features
- Resistant to corrosion, weathering including UV radiation and ozone
- Durable against acids and weak caustic solutions
- Brief wetting resistance with oil and solvents such as fuel
- Temperature range from -40°C to +120°C
- Made from EPDM rubber, silicone-free and RoHS-compliant
- Tolerances according to ISO 3302-1 M2
Professional Installation Requirements
- Installation can be performed by qualified personnel familiar with cable management and electrical safety standards.
Applications
- Cable management and protection in electrical installations
- Automotive wiring harnesses
- Industrial machinery and equipment
- Office and home electrical setups
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable material reduces need for frequent replacements
- Silicone-free composition minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Double-Sided Cable Grommet 5 PCS is available for immediate purchase, ideal for electrical and industrial cable protection applications.
