Trade Discount 20%

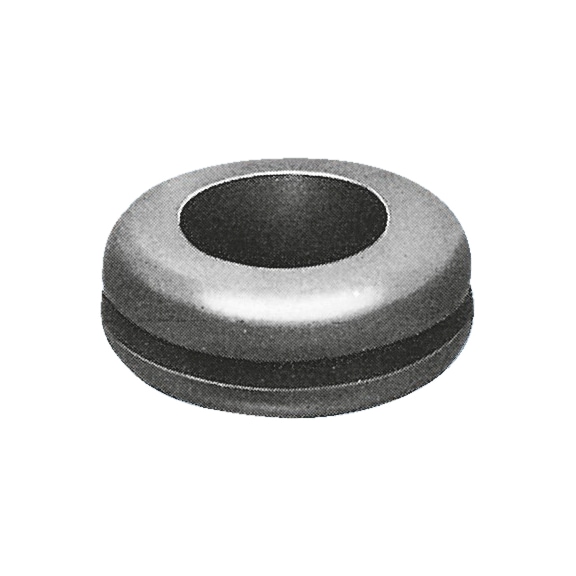

Cable Grommet Double-Sided | 25mm Internal Diameter | UV Resistant & RoHS Compliant | @Pack of 10 | by Wurth
Cable grommet double-sided with a 25mm internal diameter and UV resistance is perfect for cable management in electrical installations. Made from durable EPDM rubber, it withstands temperatures from -40°C to +120°C, ensuring reliable protection for cables passing through panels or enclosures. Ideal for industrial and automotive wiring harnesses, this pack of 10 grommets is a must-have for any professional setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Grommet Double-Sided | 25mm Internal Diameter | UV Resistant & RoHS Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5616666
Alternatively Known As: Cable protector grommet, wire grommet, cable entry grommet, rubber cable grommet, panel grommet
Technical Specifications
- Internal diameter (d): 25 mm
- Bore hole (D1): 30 mm
- Outer diameter (D): 36 mm
- Installation thickness (h1): 3.5 mm
- Height (H): 11 mm
- Material: EPDM (ethylene propylene diene monomer rubber)
- Ultraviolet resistance: Yes
- Silicone-free: Yes
- RoHS-compliant: Yes
- ISO: 3302
- Min./max. temperature resistance: -40 to 120 °C
- Dimensions (H x L x W): 11mm x 36mm x 36mm
- Weight: 0.05 kg
Key Features
- Resistant to corrosion, weathering (UV radiation, ozone), acids, and weak caustic solutions
- Brief wetting resistance with oil and solvents (e.g., fuel)
- Temperature range from -40°C to +120°C
- Tolerances according to ISO 3302-1 M2
- Made from durable EPDM rubber
- Black color
- RoHS-compliant and silicone-free
Professional Installation Requirements
- No special professional installation required; however, proper fitting into panel or enclosure holes is recommended to ensure cable protection.
Applications
- Cable management and protection in electrical installations
- Industrial and automotive wiring harnesses
- Protection of cables passing through panels or enclosures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable EPDM rubber extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Double-Sided Cable Grommet 10 PCS is available for immediate purchase, ideal for industrial, automotive, and electrical cable management applications.
