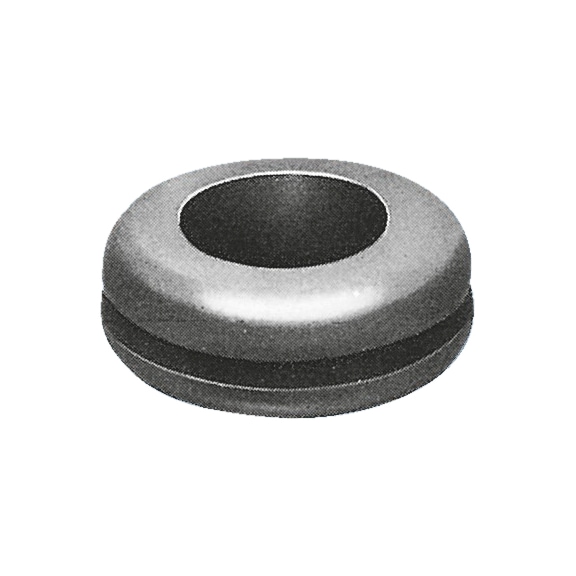

Cable Grommet Double-Sided | 4.5mm Internal Diameter | UV Resistant & Durable EPDM | @Pack of 25 | by Wurth

BRAND: Wurth
SKU: 5616634
$25.50 List price: $32.10
25 PCS ($1.02 per PCS)
+
Cable grommet double-sided with a 4.5mm internal diameter and made from durable EPDM rubber, perfect for cable management and protection in various applications. Resistant to UV radiation, acids, and temperatures from -40°C to +120°C, these grommets are ideal for automotive wiring harnesses and industrial machinery, ensuring long-lasting performance and compliance with RoHS standards.

Product Name/Title: Cable Grommet Double-Sided | 4.5mm Internal Diameter | UV Resistant & Durable EPDM | @Pack of 25 | by Wurth

Brand: Wurth

SKU: 5616634

Alternatively Known As: Cable protector grommet, wire grommet, cable entry grommet, rubber cable grommet, wiring grommet

Technical Specifications

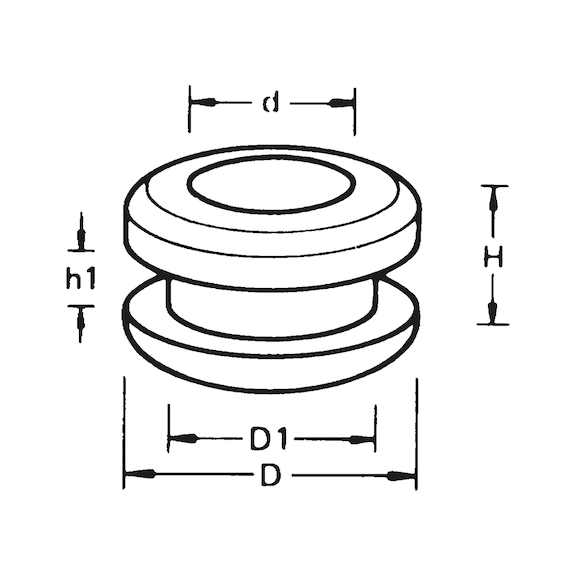

  • Internal diameter (d): 4.5 mm
  • Bore hole (D1): 6.5 mm
  • Outer diameter (D): 9.5 mm
  • Installation thickness (h1): 1.2 mm
  • Height (H): 6 mm
  • Material: EPDM (ethylene propylene diene monomer rubber)
  • Ultraviolet resistance: Yes
  • Silicone-free: Yes
  • RoHS-compliant: Yes
  • ISO: 3302
  • Min./max. temperature resistance: -40 to 120 °C
  • Dimensions (H x L x W): 6mm x 9.5mm x 9.5mm
  • Weight: 0.02 kg
Key Features
  • Resistant to corrosion, weathering including UV radiation and ozone
  • Resistant to acids and weak caustic solutions
  • Brief wetting resistance with oil and solvents such as fuel
  • Temperature range from -40°C to +120°C
  • Tolerances according to ISO 3302-1 M2
  • Made from durable EPDM rubber
  • Black color
  • RoHS-compliant and silicone-free
Professional Installation Requirements
  • No special professional installation required; suitable for easy manual installation in cable management systems.
Applications
  • Cable management and protection in electrical installations
  • Automotive wiring harnesses
  • Industrial machinery and equipment
  • Office and home electrical setups
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable material reduces need for frequent replacements
  • RoHS-compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Wurth Double-Sided Cable Grommet 25 PCS is available now for immediate purchase. Ideal for electrical, automotive, and industrial cable protection applications.
