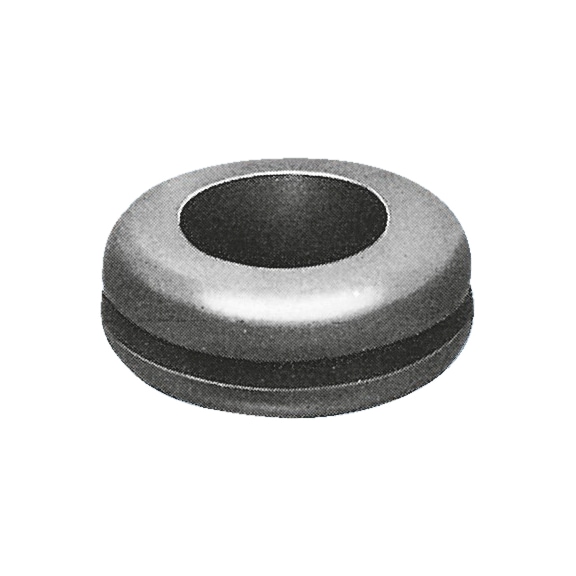

Cable Grommet Double-Sided | 9mm Internal Diameter | UV Resistant | 20 PCS | by Wurth
Cable grommet double-sided with a 9mm internal diameter and UV resistance is perfect for cable management and protection in various applications. Made from durable EPDM rubber, these grommets ensure reliable performance in electrical installations, automotive wiring harnesses, and industrial machinery. Ideal for professionals seeking quality and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Grommet Double-Sided | 9mm Internal Diameter | UV Resistant | 20 PCS | by Wurth
Brand: Wurth
SKU: 5616648
Alternatively Known As: Cable protector grommet, wire grommet, rubber cable bushing, cable entry grommet, wiring grommet

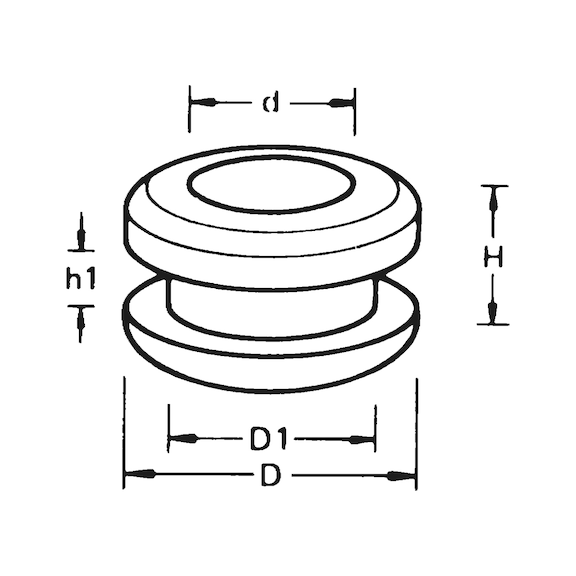

Technical Specifications
- Internal diameter (d): 9 mm
- Bore hole (D1): 11 mm
- Outer diameter (D): 16 mm
- Installation thickness (h1): 1 mm
- Height (H): 6.5 mm
- Material: EPDM (ethylene propylene diene monomer rubber)
- Ultraviolet resistance: Yes
- Silicone-free: Yes
- RoHS-compliant: Yes
- ISO: 3302
- Min./max. temperature resistance: -40 to 120 °C
- Dimensions (H x L x W): 6.5mm x 16mm x 16mm
- Weight: 0.02 kg
Key Features
- Resistant to corrosion, weathering (UV radiation, ozone), acids, and weak caustic solutions
- Brief wetting resistance with oil and solvents (e.g., fuel)
- Temperature range from -40°C to +120°C
- Tolerances according to ISO 3302-1 M2
- Made from durable EPDM rubber
- Black color
- RoHS-compliant
Professional Installation Requirements
- Installation can be performed by trained personnel; no specialized tools required but proper fitting is recommended to ensure cable protection.
Applications
- Cable management and protection in electrical installations
- Automotive wiring harnesses
- Industrial machinery and equipment
- Electrical panels and enclosures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable, long-lasting EPDM rubber reducing the need for frequent replacements
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Double-Sided Cable Grommet 20 PCS is available for immediate purchase, ideal for electrical, automotive, and industrial cable protection applications.
