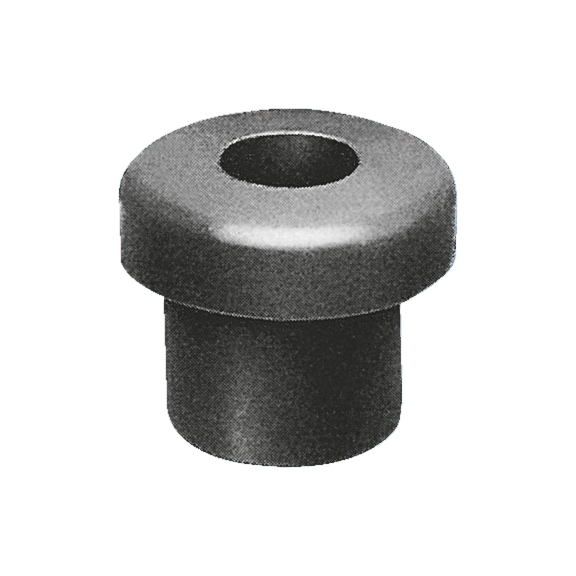

Cable Grommet One Sided | 8mm Internal Diameter | UV Resistant & RoHS Compliant | @Pack of 10 | by Wurth
The Cable Grommet One Sided is designed for effective cable protection in electrical installations, featuring an 8mm internal diameter and made from durable EPDM rubber. Ideal for automotive, industrial, and construction environments, it offers excellent resistance to UV radiation, acids, and weak caustic solutions, ensuring long-lasting performance and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Grommet One Sided | 8mm Internal Diameter | UV Resistant & RoHS Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5616638
Alternatively Known As: Cable grommet, cable protector, wire grommet, rubber grommet, panel grommet
Technical Specifications
- Internal diameter (d): 8 mm
- Bore hole (D1): 11 mm
- Outer diameter (D): 16 mm
- Installation thickness (h1): 9 mm
- Height (H): 13 mm
- Material: EPDM (ethylene propylene diene monomer rubber)
- Ultraviolet resistance: Yes
- Silicone-free: Yes
- RoHS-compliant: Yes
- ISO: 3302
- Min./max. temperature resistance: -40 to 120 °C
- Dimensions (H x L x W): 13mm x 16mm x 16mm
- Weight: 0.01 kg
Key Features
- Resistant to corrosion, weathering (UV radiation, ozone), acids, and weak caustic solutions
- Brief wetting resistance with oil and solvents (e.g., fuel)
- Temperature range from -40°C to +120°C
- Made from EPDM rubber
- Black color
- RoHS-compliant
- Tolerances according to ISO 3302-1 M2
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper cable protection and compliance with electrical standards.
Applications
- Cable protection and management in electrical installations
- Use in automotive, industrial, and construction environments
- Protection of cables passing through panels or enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable, long-lasting EPDM rubber reducing the need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Cable Grommet One Sided CBLSLEV 8x11x16mm 10 PCS is available now for immediate purchase. Ideal for electrical cable protection in industrial, automotive, and construction applications.
