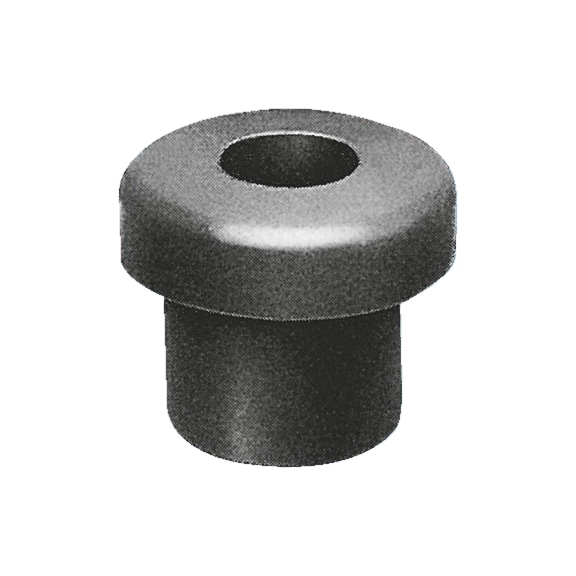

Cable Grommet One Sided | EPDM Rubber | UV Resistant | Black | @Pack of 10 | by Wurth
Cable grommet one sided designed for effective cable management and protection in electrical installations. Made from durable EPDM rubber, it offers UV resistance and a temperature range of -40°C to +120°C, making it ideal for automotive, industrial, and construction environments. This pack of 10 ensures you have the right protection for cables passing through panels or enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Grommet One Sided | EPDM Rubber | UV Resistant | Black | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5616636
Alternatively Known As: Cable grommet, cable protector, cable sleeve, wire grommet, rubber grommet, EPDM cable grommet
Technical Specifications
- Internal diameter (d): 6 mm
- Bore hole (D1): 10 mm
- Outer diameter (D): 14 mm
- Installation thickness (h1): 8 mm
- Height (H): 12 mm
- Material: EPDM (ethylene propylene diene monomer rubber)
- Ultraviolet resistance: Yes
- Silicone-free: Yes
- RoHS-compliant: Yes
- ISO: 3302
- Min./max. temperature resistance: -40 to 120 °C
- Dimensions (H x L x W): 12mm x 14mm x 14mm
- Weight: 0.01 kg
Key Features
- Resistant to corrosion, weathering (UV radiation, ozone), acids, and weak caustic solutions
- Brief wetting resistance with oil and solvents (e.g., fuel)
- Temperature range from -40°C to +120°C
- Tolerances according to ISO 3302-1 M2
- Made from EPDM rubber
- Black color
- RoHS-compliant
Professional Installation Requirements
- Installation is straightforward but should be performed by a qualified professional to ensure proper cable protection and compliance with electrical standards.
Applications
- Cable management and protection in electrical installations
- Use in automotive, industrial, and construction environments
- Protection of cables passing through panels or enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable, long-lasting EPDM rubber reducing frequent replacements
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Cable Grommet One Sided CBLSLEV ONESIDED 6X10X14MM 10 PCS is available for immediate purchase, ideal for cable protection in electrical, automotive, and industrial applications.
