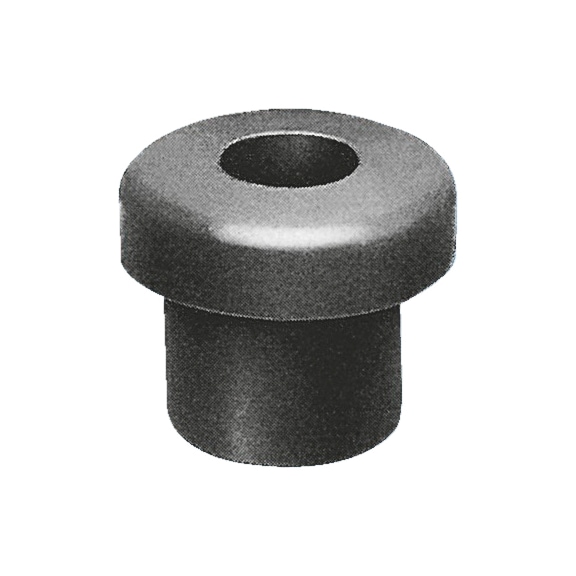

Cable Grommet One Sided | EPDM Rubber | UV Resistant | Black | @Pack of 10 | by Wurth

BRAND: Wurth
SKU: 5616640
$68.90 List price: $86.60
10 PCS ($6.89 per PCS)
+
The Cable Grommet One Sided is designed for effective cable protection in electrical installations, featuring durable EPDM rubber that withstands temperatures from -40°C to +120°C. Ideal for industrial machinery and automotive wiring, this grommet offers excellent resistance to corrosion, UV radiation, and weak caustic solutions, ensuring long-lasting performance in demanding environments.

Product Name/Title: Cable Grommet One Sided | EPDM Rubber | UV Resistant | Black | @Pack of 10 | by Wurth

Brand: Wurth

SKU: 5616640

Alternatively Known As: Cable Grommet, One-Sided Cable Grommet, EPDM Cable Grommet, Wire Protection Grommet, Rubber Cable Grommet

Technical Specifications
  • Internal diameter (d): 10 mm
  • Bore hole (D1): 14 mm
  • Outer diameter (D): 18 mm
  • Installation thickness (h1): 10 mm
  • Height (H): 15 mm
  • Material: EPDM (ethylene propylene diene monomer rubber)
  • Ultraviolet resistance: Yes
  • Silicone-free: Yes
  • RoHS-compliant: Yes
  • ISO: 3302
  • Min./max. temperature resistance: -40 to 120 °C
  • Dimensions (H x L x W): 15mm x 18mm x 18mm
  • Weight: 0.02 kg
Key Features
  • Resistant to corrosion, weathering (UV radiation, ozone), acids, and weak caustic solutions
  • Brief wetting resistance with oil and solvents (e.g., fuel)
  • Temperature range from -40°C to +120°C
  • Tolerances according to ISO 3302-1 M2
  • Made from EPDM rubber
  • Black color
  • RoHS-compliant
Professional Installation Requirements
  • Installation should be performed by a qualified technician to ensure proper fit and protection of cables.
Applications
  • Cable protection and management in electrical installations
  • Industrial machinery wiring
  • Automotive wiring harnesses
  • General use in environments requiring corrosion and weather resistance
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from durable EPDM rubber which extends product life and reduces waste
  • RoHS-compliant ensuring restriction of hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.

Available Now

The Wurth Cable Grommet One Sided CBLSLEV 10x14x18mm 10 PCS is available now for immediate purchase. Ideal for electrical and industrial cable protection applications.
