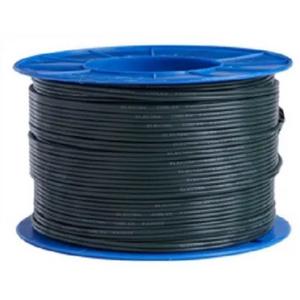

Cable Instrumentation 14/0.20 6 Core Overall Screened | PVC Insulation | Aluminium Tape Screen | by Electra Cables
Cable Instrumentation 14/0.20 6 Core Overall Screened is designed for reliable internal and external inter-connections of electronic apparatus. Featuring plain annealed copper wire conductors and durable PVC insulation, this cable minimizes electromagnetic interference, making it ideal for computer systems, intercoms, and alarm systems in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 6 Core Screened, Multi Pair Instrumentation Cable, Screened Control Cable
Technical Specifications
- Conductor: Plain annealed copper wire
- Insulation: PVC V90HT or V75
- Screen: Aluminium tape screen with polyester mylar tape lapping and 7/0.20mm tinned copper drain wire
- Sheath: PVC 5V-90 or 4V-75
- Voltage rating: 240V radial thickness sheath, not for mains power connection
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.3 kg
Key Features
- Overall screened multi-pair instrumentation cable
- Plain annealed copper wire conductor
- PVC V90HT or V75 insulation
- Aluminium tape screen with polyester mylar tape lapping
- 7/0.20mm tinned copper drain wire
- PVC 5V-90 or 4V-75 sheath
- Designed for 240V radial thickness sheath, not for mains power connection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with instrumentation cable standards and safety requirements.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling systems
- Alarm systems
Standards & Compliance
- AS/NZS 3808 – PVC Insulated Cables
Environmental Benefits
- Durable PVC insulation and sheath materials extend cable life reducing waste
- Screening reduces electromagnetic interference improving system efficiency
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Electra Cables Cable Instrumentation 14/0.20 6 Core Overall Screened is available for immediate purchase, ideal for electronic inter-connection applications in industrial and commercial settings.
