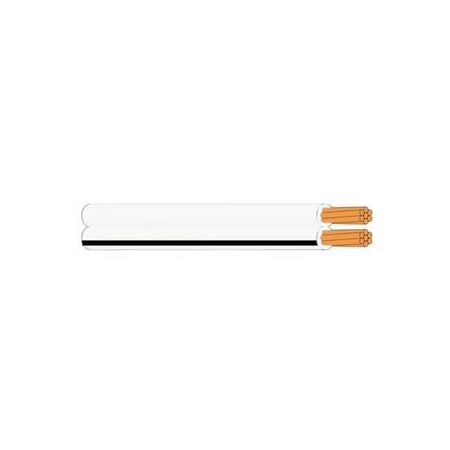

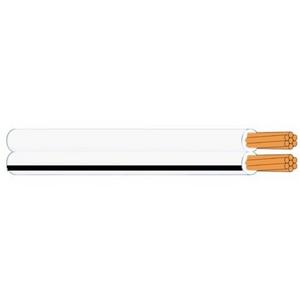

Cable Security Figure 8 24/0.20 100M | Plain Annealed Copper | PVC Insulation | Low Voltage Rated | by Electra Cables
Cable Security Figure 8 24/0.20 100M is designed for reliable connectivity in security systems and access control applications. Featuring a plain annealed copper conductor and durable PVC insulation, this cable ensures optimal performance in low voltage environments up to 100V DC or 32V AC. Ideal for professional installations, it meets AS/NZS standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Figure 8 Security Cable, Security Control Cable, Access Control Cable
Technical Specifications
- Conductor: Plain annealed copper
- Insulation: PVC V75
- Sheath: PVC V75
- Voltage rating: 100V DC or 32V AC
- Dimensions (H x L x W): 6mm x 100000mm x 6mm
- Weight: 1.2 kg
Key Features
- Plain annealed copper conductor for reliable conductivity
- PVC V75 insulation and sheath for durability and protection
- Suitable for low voltage applications up to 100V DC or 32V AC
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with safety and performance standards.
Applications
- Security systems
- Control and communications equipment
- Access control
- Detection and monitoring
Standards & Compliance
- Complies with AS/NZS 1125 for conductor standards
- Complies with AS/NZS 3808 for PVC insulation and sheath
Environmental Benefits
- Durable PVC insulation and sheath reduce the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Available Now
The Electra Cables Cable Security Figure 8 24/0.20 100M White/Black is available for immediate purchase, ideal for security and control system installations.
