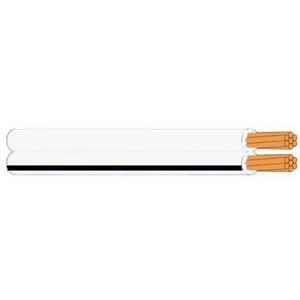

Cable Security Figure 8 32/0.20 100M | Plain Annealed Copper | PVC Insulation | Low Voltage Rated | by Electra Cables
Cable Security Figure 8 32/0.20 100M is designed for reliable security and control system installations. Featuring a plain annealed copper conductor and durable PVC insulation, this cable is suitable for low voltage applications up to 100V DC or 32V AC. Ideal for security systems, access control, and communications equipment, it ensures optimal performance and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Figure 8 Security Cable, Security Control Cable, Access Control Cable
Technical Specifications
- Conductor: Plain annealed copper
- Insulation: PVC V75
- Sheath: PVC V75
- Voltage rating: 100V DC or 32V AC
- Standard compliance: AS/NZS 1125 (Conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 5mm x 100000mm x 5mm
- Weight: 1.2 kg
Key Features
- Plain annealed copper conductor for reliable conductivity
- PVC V75 insulation and sheath for durability and protection
- Suitable for low voltage applications up to 100V DC or 32V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Security systems
- Control and communications equipment
- Access control
- Detection and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation and sheath are recyclable materials
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for detailed warranty terms.
Available Now
Electra Cables Cable Security Figure 8 32/0.20 100M White/Black is available for immediate purchase, ideal for security and control system installations.
