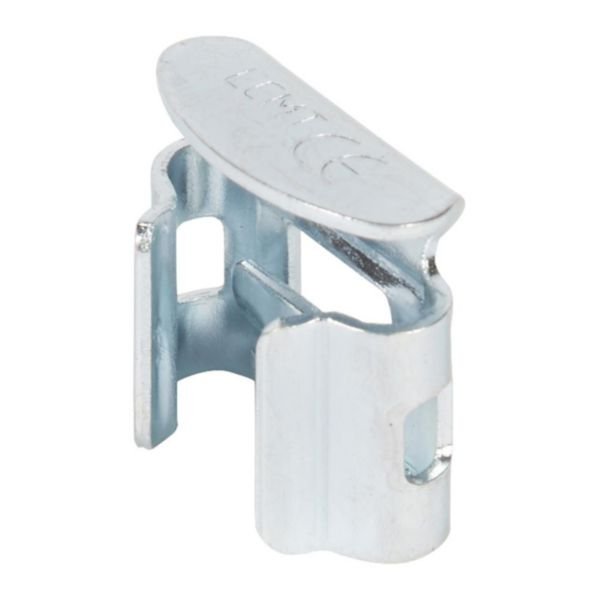

Cable Tray Bend Connector | Electro Zinc Steel | Snapable Connection | Hinged Joint | @Bag of 1 | by Cablofil
The Cable Tray Bend Connector is designed for tray widths from 300mm to 600mm, featuring a snapable connection for easy installation and a hinged joint for flexible bending. Made from electro zinc plated steel, it offers excellent corrosion resistance and is ideal for industrial and commercial cable management applications, ensuring compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Tray Bend Connector | Electro Zinc Steel | Snapable Connection | Hinged Joint | @Bag of 1 | by Cablofil
Brand: Cablofil
SKU: CM558320
Alternatively Known As: Cable Tray Bend Connector, Wire Mesh Tray Bend Connector, Cable Tray Radius Bend, Cable Tray Coupler
Technical Specifications
- Material: Electro zinc plated steel
- Suitable tray width: 300mm to 600mm
- Suitable tray height: 50mm
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Type of connection: Snapable
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 50mm x 27mm x 600mm
- Weight: 0.3 kg
Key Features
- Snapable type connection for easy installation
- Hinged joint horizontal for flexible bending
- Electro zinc plated steel for corrosion resistance
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant connections.
Applications
- Used for creating radius bends in steel wire cable trays
- Suitable for wire mesh cable trays with widths from 300mm to 600mm
- Ideal for cable management in industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanic zinc plating extends product life reducing replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray Bend Connector for tray widths 300mm to 600mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
