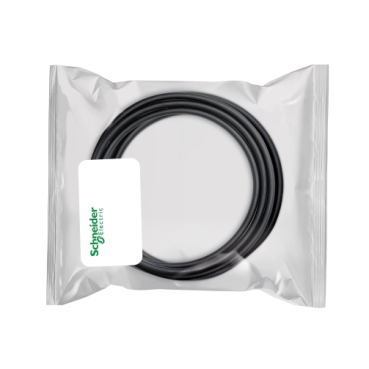

Cable XBT for Rockwell DF1 | 8-Pin Mini-DIN to 9-Pin D-Sub | 2m Length | by Clipsal
The Cable XBT for Rockwell DF1 is a specialized communication cable designed for Magelis XBT terminals, enabling reliable data transfer between HMI and Rockwell PLCs. With an 8-pin mini-DIN connector for the XBT terminal and a 9-pin D-sub for the PLC, this 2-meter cable is perfect for industrial automation systems, ensuring efficient and secure connections in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable XBT for Rockwell DF1 | 8-Pin Mini-DIN to 9-Pin D-Sub | 2m Length | by Clipsal
Brand: Clipsal
SKU: SCHXBTZ9733
Alternatively Known As: SCHXBTZ9733, Magelis XBT to Rockwell DF1 Cable, Rockwell DF1 Communication Cable, XBTZ9733 Cable, HMI to PLC DF1 Cable
Technical Specifications
- Cable type: Communication cable for Magelis XBT terminals
- Protocol supported: Rockwell DF1
- Connector 1: 8-pin mini-DIN (for XBT terminal)
- Connector 2: 9-pin D-sub (for Rockwell PLC)
- Cable length: 2 meters
- Operating temperature: -10°C to +60°C
- RoHS compliant
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.2 kg
Key Features
- Specialized communication cable for Magelis XBT terminals
- Enables reliable DF1 protocol data transfer between HMI and Rockwell PLCs
- Plug-and-play design for easy installation
- Durable construction for industrial environments
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial automation systems to ensure correct protocol configuration and secure connections.
Applications
- Industrial automation systems
- Connecting Magelis XBT terminals to Rockwell PLCs using DF1 protocol
- Factory automation and process control environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient automation, reducing manual intervention and energy waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHXBTZ9733 Cable XBT for Rockwell DF1 is available for immediate purchase. Ideal for industrial automation and process control applications requiring reliable HMI to PLC communication.
