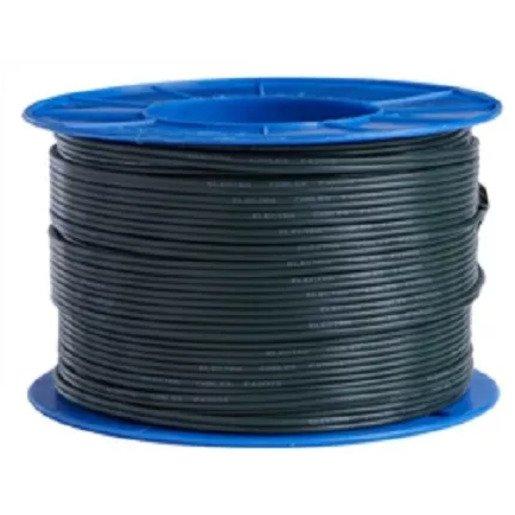

Cable XLPE 95mm 4 Core | Stranded Copper | UV & Moisture Resistant | LSZH Sheath | @KM of 0.10 | by Electra Cables
Cable XLPE 95mm 4 Core is designed for high current carrying capacity with its stranded copper conductor and superior XLPE insulation. Ideal for industrial and commercial power distribution, this cable is UV and moisture resistant, making it suitable for both underground and above-ground applications. With a low smoke, zero halogen sheath, it ensures enhanced safety in fire conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable XLPE 95mm 4 Core | Stranded Copper | UV & Moisture Resistant | LSZH Sheath | @KM of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: XLPE4950-BBLK
Alternatively Known As: 95mm 4 Core XLPE Cable, 4C 95mm Power Cable, 95mm² 4 Core Mains Cable, Heavy Duty XLPE Cable
Technical Specifications
- Conductor: Stranded copper, 95mm²
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: PVC or LSZH (Low Smoke Zero Halogen)
- Number of Cores: 4
- Voltage Rating: 0.6/1kV
- Operating Temperature: -25°C to +90°C
- Standards: AS/NZS 5000.1
- UV and moisture resistant
- Suitable for direct burial and outdoor use
- Dimensions (H x L x W): 45mm x 1000mm x 45mm
- Weight: 4.5 kg
Key Features
- XLPE (Cross-Linked Polyethylene) insulation for superior thermal and electrical properties
- 95mm² conductor size for high current carrying capacity
- 4 core design suitable for three-phase and neutral applications
- UV and moisture resistant sheath for outdoor and underground use
- Low smoke, zero halogen (LSZH) for enhanced safety in fire conditions
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Proper cable handling and termination tools are required.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and above ground mains power supply
- Mining and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables with extruded insulation for working voltages up to and including 0.6/1kV
Environmental Benefits
- Low smoke, zero halogen (LSZH) sheath reduces toxic emissions in case of fire
- Durable construction extends cable lifespan, reducing replacement frequency
- UV and moisture resistance minimizes environmental degradation
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Electra Cables XLPE 95mm 4 Core Power Cable is available for immediate purchase. Ideal for industrial, commercial, and infrastructure power distribution applications.
