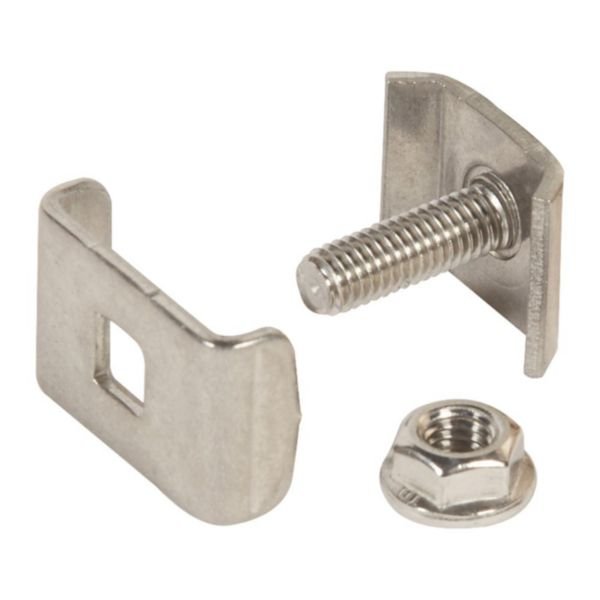

Cablofil 316L Stainless Steel Clamp Plate Kit | M6 Bolt & Nut Included | Halogen Free | @Bag of 1 | by Cablofil
The Cablofil 316L Stainless Steel Clamp Plate Kit is designed for secure cable management, featuring a large and small clamp plate with an integrated M6 bolt and nut. Ideal for wire mesh trays with widths from 50 to 600 mm, this durable kit operates within -20°C to 120°C, ensuring reliable performance in various environments. Perfect for professional installations requiring high-quality, corrosion-resistant components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Clamp Plate Kit | M6 Bolt & Nut Included | Halogen Free | @Bag of 1 | by Cablofil
Brand: Cablofil
SKU: CM558954
Alternatively Known As: Stainless Steel Clamp Plate Kit, Cable Tray Clamp Fixing Kit, M6 Bolt Clamp Plate Set
Technical Specifications
- Material: 316L Stainless Steel, pickled surface
- Type of connection: Screw connector
- Suitable for cable support system width: 50-600 mm
- Suitable for cable support system height: 25 mm
- Operating temperature: -20°C to 120°C
- Halogen free: Yes
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Length: 98 mm
- Dimensions (H x L x W): 25mm x 98mm x 50mm
- Weight: 0.3 kg
Key Features
- Includes large clamp plate, small clamp plate with integrated bolt and M6 nut
- Made from high-quality 316L stainless steel with pickled surface
- Screw connector type for secure fixing
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Suitable for wire mesh trays, not suitable for cable ladders or trays
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems and stainless steel fixing components to ensure secure and compliant assembly.
Applications
- Suitable for wire mesh trays with widths from 50 to 600 mm
- Used in cable support systems with height 25 mm
- Ideal for securing longitudinal and hinged horizontal joints in cable management
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction ensures long product life reducing waste
- Halogen free materials contribute to safer environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for details.
Available Now
The Cablofil 316L Stainless Steel Large and Small Clamp Plate Fixing Kit with M6 bolt and nut is available for immediate purchase, ideal for professional cable management installations requiring durable and corrosion-resistant fixing solutions.
