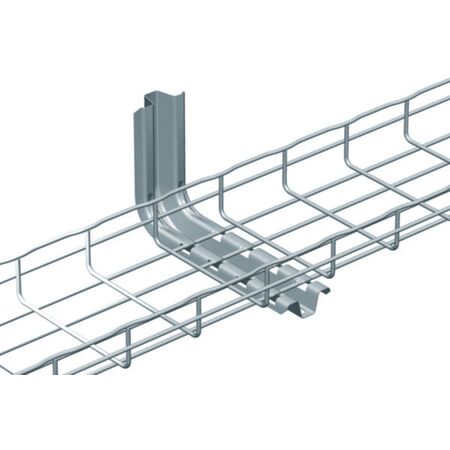

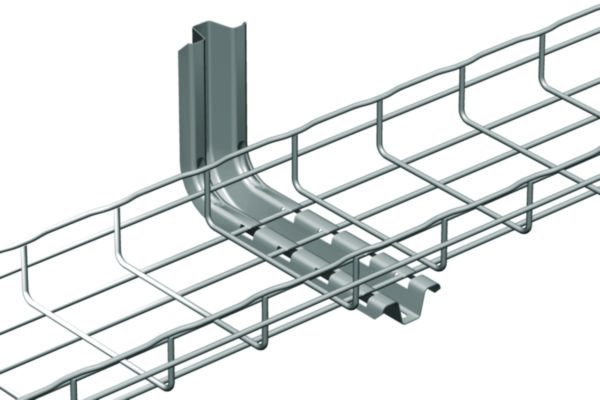

Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 100mm Width | 1300 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm is designed for robust cable management, featuring a 100mm width and a safe working load of 1300 N. Ideal for industrial and commercial applications, this arm is constructed from durable, corrosion-resistant stainless steel, ensuring long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 100mm Width | 1300 N Safe Working Load | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556104
Alternatively Known As: Stainless Steel Cable Tray Cantilever Arm, Cable Tray Wall Bracket 100mm, Cablofil Wire Tray Support Arm
Technical Specifications
- Material: Stainless steel 316L
- Length: 178 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100 mm
- Angle: 90°
- Safe working load: 1300 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 170mm x 178mm x 32mm
- Weight: 0.5 kg
Key Features
- Constructed from durable 316L stainless steel for corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 1300 N according to IEC 61537
- Suitable for cable support system width of 100 mm
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Industrial cable management systems
- Commercial and infrastructure cable support
- Wall mounting for cable trays in electrical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 316L which is highly durable and recyclable
- Halogen free materials reduce environmental impact
- Long service life reduces need for replacement and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
