Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil

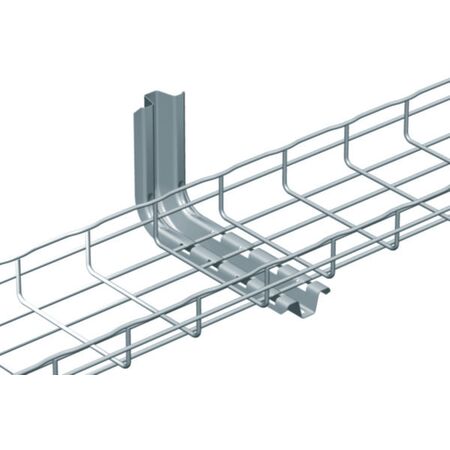

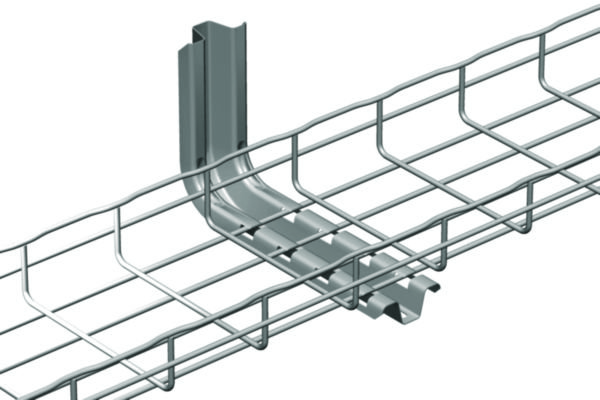

The Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 1100 N and constructed from high-quality 316L stainless steel, it ensures superior corrosion resistance and durability. Ideal for supporting cable trays in wall-mounted configurations, this arm is perfect for environments requiring reliable cable support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556114
Alternatively Known As: Stainless Steel Cable Tray Cantilever Arm, Cable Tray Wall Bracket, 316L Stainless Steel Cable Support Arm
Technical Specifications
- Material: 316L Stainless Steel
- Length: 228 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-150 mm
- Angle: 90-90°
- Safe working load: 1100 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 228mm x 32mm
- Weight: 0.5 kg
Key Features
- Constructed from high-quality 316L stainless steel for superior corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 1100 N according to IEC 61537
- Suitable for cable support system widths from 100 to 150 mm
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Cable management and support in industrial and commercial electrical installations
- Suitable for use in environments requiring corrosion resistance and high durability
- Ideal for supporting cable trays in wall-mounted configurations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel which extends product lifespan and reduces replacement frequency
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Cantilever Arm 150mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
