Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 730 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil

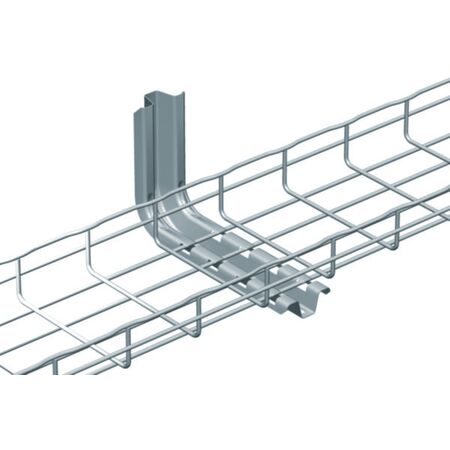

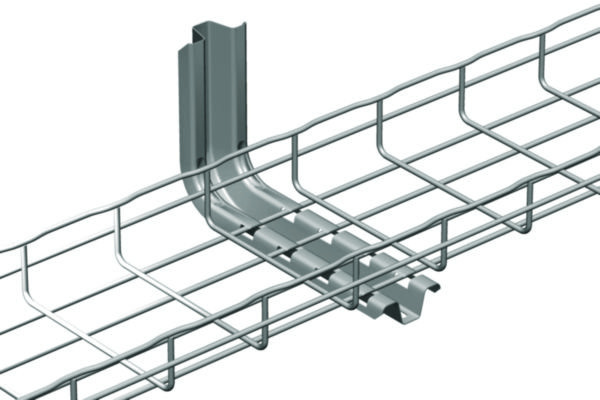

The Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 730 N and a halogen-free construction, it ensures durability and compliance with IEC 61537 standards. Ideal for cable support systems ranging from 100mm to 300mm, this arm is perfect for environments requiring high corrosion resistance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 730 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556134
Alternatively Known As: Stainless Steel Cable Tray Cantilever Arm, Cable Tray Wall Bracket, 316L Cable Support Arm
Technical Specifications
- Material: 316L Stainless Steel
- Length: 378 mm
- Width: 67 mm
- Height: 170 mm
- Suitable for cable support system width: 100-300 mm
- Angle: 90-90°
- Safe working load: 730 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 378mm x 67mm
- Weight: 1.2 kg
Key Features
- Constructed from high-quality 316L stainless steel for superior corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 730 N compliant with IEC 61537
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
- Halogen free material
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with structural and safety standards.
Applications
- Supports cable management systems in industrial and commercial electrical installations
- Suitable for use in environments requiring corrosion resistance and high durability
- Ideal for cable support systems with widths from 100mm to 300mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel which extends product lifespan and reduces replacement frequency
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Cantilever Arm 300mm is available for immediate purchase, ideal for industrial and commercial cable management support applications.
