Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 850 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil

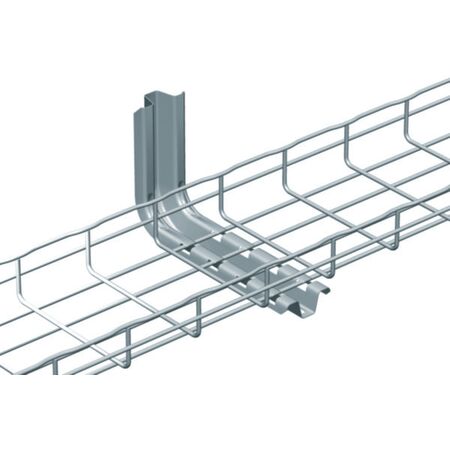

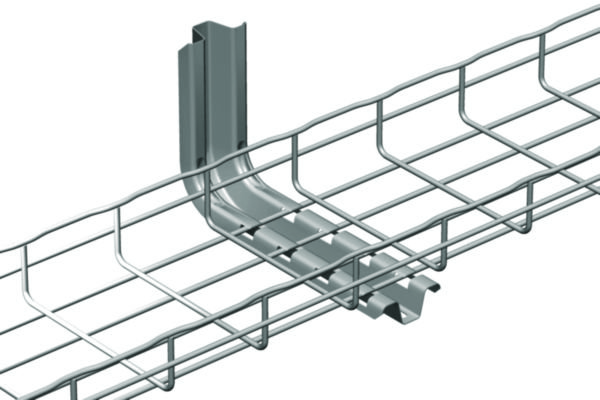

The Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 850 N and a halogen-free construction, it ensures durability and safety in demanding environments. Ideal for wall-mounted configurations, this arm supports cable trays with widths from 100 to 200 mm, making it a reliable choice for your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Cantilever Arm | 850 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556124
Alternatively Known As: Stainless Steel Cable Tray Cantilever Arm, Cable Tray Wall Bracket, 316L Cable Support Arm
Technical Specifications
- Material: 316L Stainless Steel
- Length: 278 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-200 mm
- Safe working load: 850 N (IEC 61537)
- Angle: 90-90°
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 170mm x 278mm x 32mm
- Weight: 0.5 kg
Key Features
- Constructed from high-quality 316L stainless steel for superior corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 850 N according to IEC 61537
- Suitable for cable support system widths from 100 to 200 mm
- Halogen free material
- Operating and storage temperature range from -20°C to 120°C
- Wall bracket model with 90-90° angle
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure fixing and compliance with safety standards.
Applications
- Cable management and support in industrial and commercial electrical installations
- Suitable for use in environments requiring corrosion resistance and high durability
- Ideal for supporting cable trays in wall-mounted configurations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel which extends product lifespan and reduces replacement frequency
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Cantilever Arm 200mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
