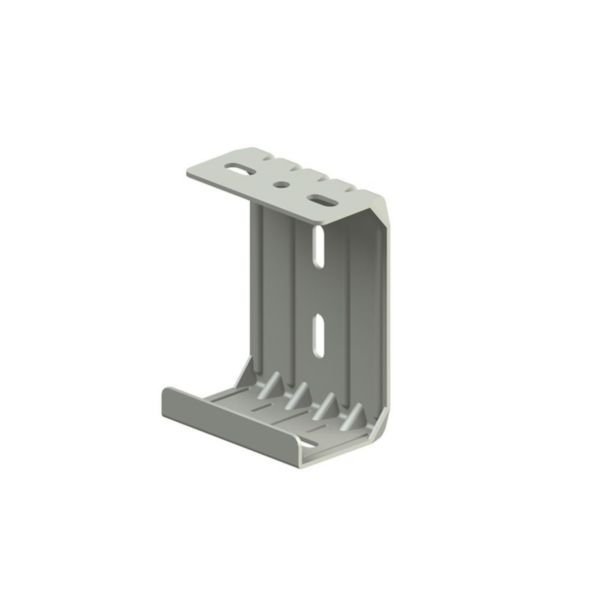

Cablofil 316L Stainless Steel Wire Cable Tray Ceiling Support Bracket | 1800 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Ceiling Support Bracket is engineered for robust support in commercial and industrial settings. With a load-bearing capacity of 1800 N and compatibility with cable trays ranging from 50 mm to 300 mm in width, this bracket ensures reliable cable management. Its pickled stainless steel surface enhances durability, making it an ideal choice for long-lasting installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 316L Stainless Steel, pickled surface
- Load Bearing Capacity: 1800 N
- Suitable Tray Width: 50 to 300 mm
- Length: 65.5 mm
- Width: 100 mm
- Height: 135 mm
- Diameter: 9 mm
- Thread Size: Metric 0
- Hinging: No
- Adjustable: No
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 135mm x 65.5mm x 100mm
- Weight: 0.5 kg
Key Features
- Made from high-quality 316L stainless steel for corrosion resistance
- Designed for ceiling mounting to support wire cable trays
- Load bearing capacity of 1800 N
- Pickled stainless steel surface for enhanced durability
- Compatible with cable trays from 50 mm to 300 mm width
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems and structural support requirements to ensure safety and compliance.
Applications
- Supports cable trays in commercial and industrial ceiling installations
- Suitable for use with 50 to 300 mm wide cable trays
- Ideal for electrical wiring management in buildings and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports organized cable management which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Ceiling Support Bracket is available for immediate purchase, ideal for commercial and industrial cable management applications.
