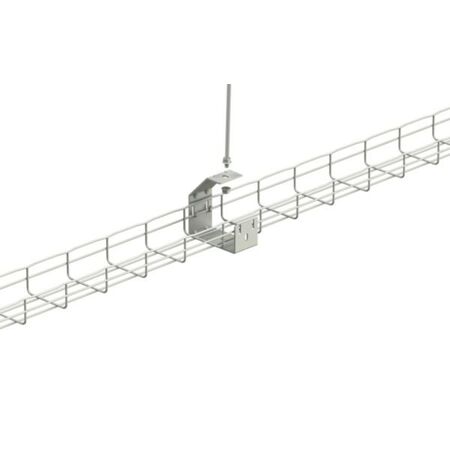

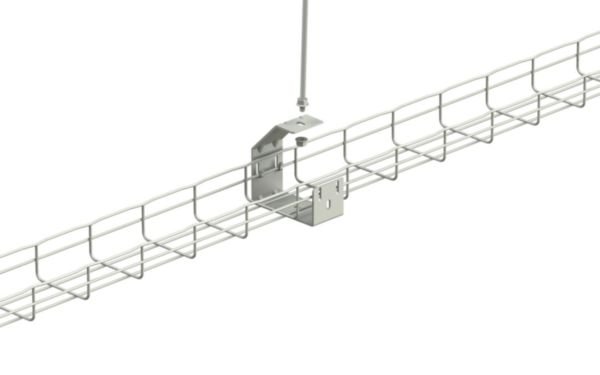

Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger | 2500 N Load Capacity | Pickled Finish | @EA of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger is engineered for robust support in industrial and commercial electrical installations. With a remarkable load-bearing capacity of 2500 N and a durable pickled finish, it’s perfect for managing 50mm and 100mm cable trays in harsh environments. This non-adjustable, fixed design ensures secure and compliant mounting, making it an essential component for reliable cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 316L Stainless Steel, pickled finish
- Length: 125 mm
- Width: 60 mm
- Height: 133.8 mm
- Diameter: 21 mm
- Load Bearing Capacity: 2500 N
- Non-adjustable, no hinging
- Suitable for 50mm and 100mm cable trays
- Dimensions (H x L x W): 134mm x 125mm x 60mm
- Weight: 0.5 kg
Key Features
- Constructed from 316L stainless steel for superior corrosion resistance
- Designed for use with 50mm and 100mm cable tray widths
- Load bearing capacity of 2500 N
- Pickled stainless steel surface for enhanced durability
- Non-adjustable, fixed central hanger design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports for 50mm and 100mm wire cable trays in industrial and commercial electrical installations
- Suitable for cable management in harsh environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from long-lasting stainless steel reducing the need for frequent replacements
- Corrosion resistance minimizes environmental impact from material degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
