Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger Bracket | 90° Angle Design | Safe Working Load 120 N | @Each of 1 | by Cablofil

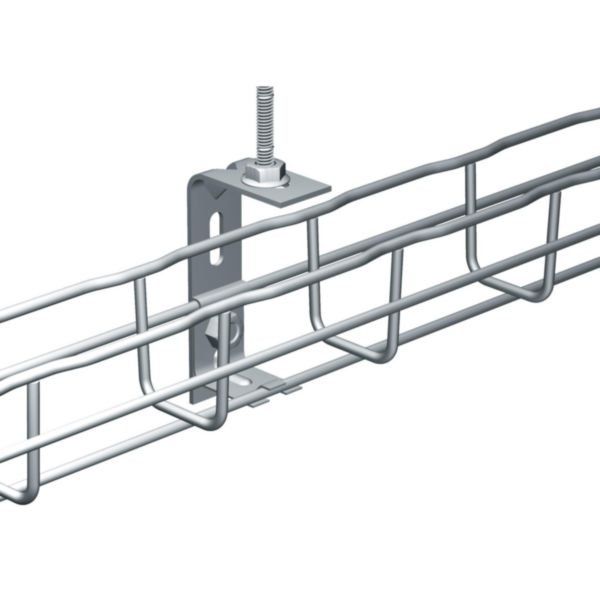

The Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger Bracket is engineered for 50 mm wide cable trays, providing a robust 90° angle design and a safe working load of 120 N. Ideal for industrial and commercial electrical installations, this halogen-free bracket ensures superior corrosion resistance and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger Bracket | 90° Angle Design | Safe Working Load 120 N | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM557304
Alternatively Known As: Stainless Steel Cable Tray Hanger Bracket, 316L Cable Tray Support Bracket, Wire Mesh Cable Tray Bracket
Technical Specifications
- Material: Stainless steel 316L (1.4401)
- Suitable cable tray width: 50 mm
- Bracket angle: 90°
- Safe working load: 120 N (per IEC 61537)
- Operating temperature: -20°C to 120°C
- Surface protection: Other
- Halogen free: Yes
- Storage temperature: -20°C to 120°C
- Dimensions (H x L x W): 58mm x 110mm x 30mm
- Weight: 0.2 kg
Key Features
- Constructed from high-quality stainless steel 316L (1.4401) for superior corrosion resistance
- Designed specifically for 50 mm wide cable trays
- Safe working load of 120 N according to IEC 61537
- Operating temperature range from -20°C to 120°C
- Halogen free material
- 90° angle wall bracket design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant mounting.
Applications
- Supports cable trays in industrial and commercial electrical installations
- Suitable for use with 50 mm wide cable trays
- Ideal for environments requiring corrosion-resistant cable support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 316L which is highly durable and recyclable
- Halogen free material reduces environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Central Hanger Bracket is available for immediate purchase, ideal for industrial and commercial cable management applications.
