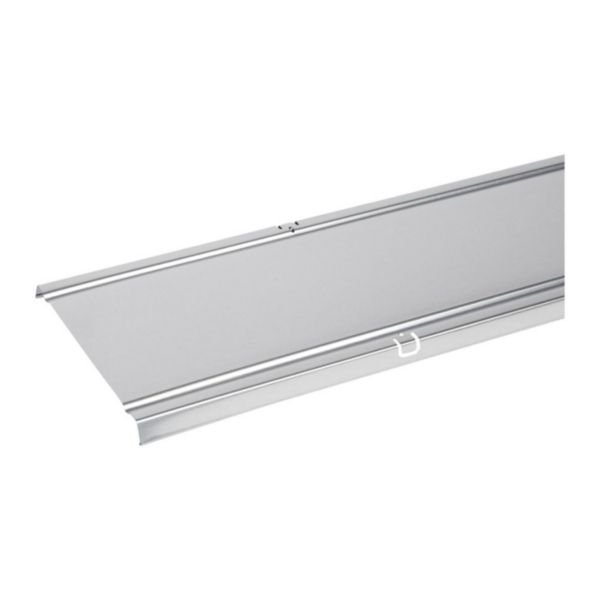

Cablofil 316L Stainless Steel Wire Cable Tray Cover | 100mm Width | 2m Length | Halogen Free | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Cover is designed for wire mesh trays, featuring a durable 100mm width and 2m length. Made from high-quality 316L stainless steel, it offers excellent corrosion resistance and operates within a temperature range of -20°C to 120°C. Ideal for industrial and commercial electrical installations, this cover protects cables from dust and mechanical damage while allowing for ventilation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 316L Stainless Steel, pickled finish
- Material thickness: 0.6 mm
- Cover width: 100 mm
- Length: 2000 mm
- Suitable for wire mesh trays only
- Type of fastening: Cover clamp
- Operating temperature: -20°C to 120°C
- Halogen free
- Dimensions (H x L x W): 20mm x 2000mm x 100mm
- Weight: 2.5 kg
Key Features
- Made from high-quality 316L stainless steel for excellent corrosion resistance
- Supplied in 2 meter lengths with 100mm width
- Can be fitted directly with integral tabs or with optional clips
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation recommended to ensure secure fitting and compliance with electrical safety standards.
Applications
- Suitable for wire mesh cable trays in industrial and commercial electrical installations
- Used to protect cables from dust and mechanical damage while allowing ventilation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from recyclable stainless steel material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Cover 100mm x 2m Length is available for immediate purchase, ideal for protecting cables in industrial and commercial wire mesh tray installations.
