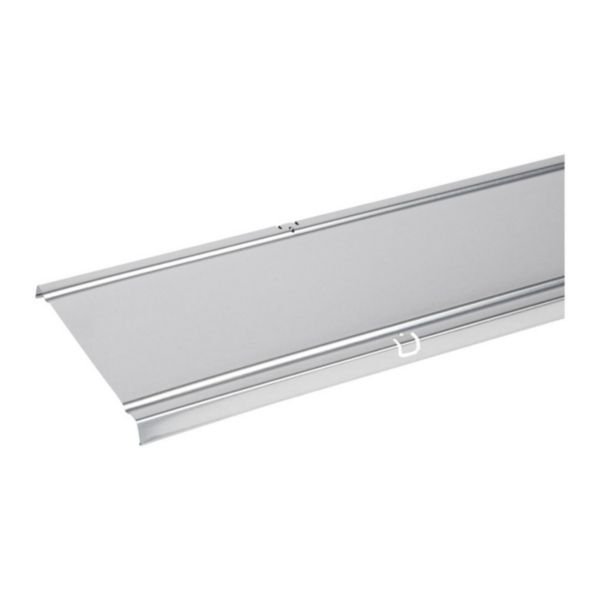

Cablofil 316L Stainless Steel Wire Cable Tray Cover | 400mm Width | 2m Length | Halogen Free | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Cover is designed for robust cable management, featuring a 400mm width and 2m length. Made from high-quality 316L stainless steel with a pickled finish, it offers excellent corrosion resistance and is halogen-free for enhanced safety. Ideal for industrial and commercial applications, this cover protects cables from dust and mechanical damage while ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 316L Stainless Steel, pickled finish
- Width: 400 mm
- Length: 2000 mm
- Material Thickness: 0.75 mm
- Suitable for: Wire mesh cable trays
- Type of fastening: Cover clamp
- Operating Temperature: -20°C to 120°C
- Halogen Free: Yes
- Dimensions (H x L x W): 20mm x 2000mm x 400mm
- Weight: 3.5 kg
Key Features
- Made from high-quality 316L stainless steel for excellent corrosion resistance
- Supplied in 2 meter lengths with a width of 400mm
- Material thickness of 0.75mm providing durability and strength
- Halogen free material ensuring safety in case of fire
- Can be fitted directly with integral tabs or with optional clips
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure fitting and compliance with safety standards.
Applications
- Suitable for wire mesh cable trays in industrial and commercial electrical installations
- Used to protect cables from dust, debris, and mechanical damage
- Ideal for environments requiring corrosion-resistant cable management solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from recyclable stainless steel material
- Long service life reduces the need for frequent replacements
- Halogen free material contributes to safer environmental impact in fire situations
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Cover 400mm x 2m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
