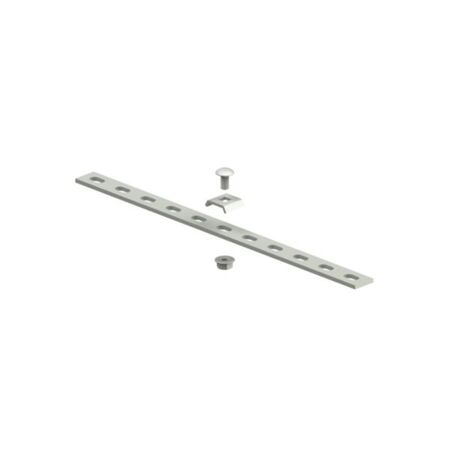

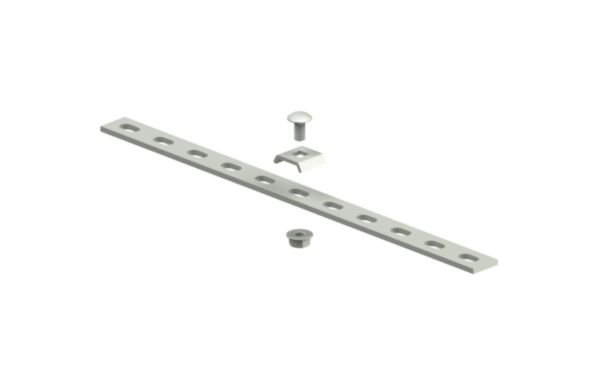

Cablofil 316L Stainless Steel Wire Cable Tray Joint Strip | 275mm Length | Hinged Horizontal Joint | Screw Connector | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Joint Strip is designed for reliable cable management, featuring a durable pickled surface and a hinged horizontal joint for easy installation. Ideal for cable support systems with widths from 50 to 600 mm, this joint strip ensures secure connections and is perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Joint Strip | 275mm Length | Hinged Horizontal Joint | Screw Connector | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM558224
Alternatively Known As: Cable Tray Joint Strip, Stainless Steel Splice Bar, Wire Mesh Cable Tray Connector
Technical Specifications
- Material: 316L Stainless Steel, pickled surface
- Length: 275 mm
- Suitable for cable support system width: 50-600 mm
- Suitable for cable support system height: 50 mm
- Type of connection: Screw connector
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 50mm x 275mm x 50mm
- Weight: 0.3 kg
Key Features
- Made from high-quality 316L stainless steel with pickled surface
- Hinged horizontal joint for easy installation
- Screw connector type for secure fastening
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Suitable for cable support system heights of 50 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems to ensure secure and compliant connections.
Applications
- Suitable for wire mesh cable trays
- Used in cable support systems with widths from 50 to 600 mm
- Ideal for longitudinal joint connections in cable tray installations
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from corrosion-resistant stainless steel for long service life reducing replacement waste
- Halogen free materials contribute to safer environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Joint Strip 275mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
