Cablofil 316L Stainless Steel Wire Cable Tray Mounting Plate | Corrosion Resistant | 1000 N Safe Working Load | @Each of 1 | by Cablofil

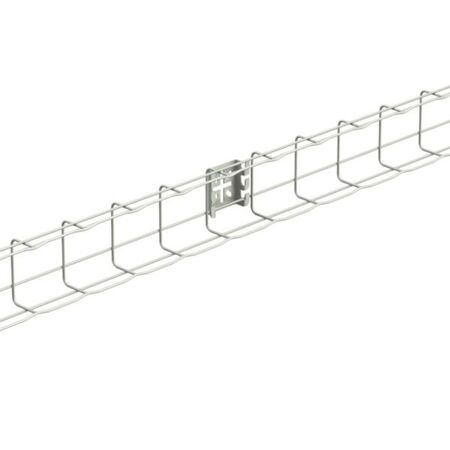

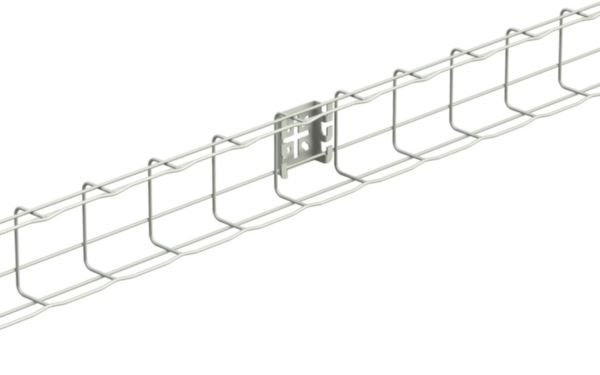

The Cablofil 316L Stainless Steel Wire Cable Tray Large Universal Mounting Plate is designed for robust cable management in industrial and commercial settings. With a safe working load of 1000 N and suitable for cable support systems from 50-100 mm wide, this plate ensures secure mounting at a fixed 90° angle. Its high-quality stainless steel construction offers superior corrosion resistance, making it ideal for both horizontal and vertical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel 316L (1.4401)
- Surface Protection: Other
- Operating Temperature: -20°C to 120°C
- Storage Temperature: -20°C to 120°C
- Safe Working Load: 1000 N (per IEC 61537)
- Suitable for Cable Support System Width: 50-100 mm
- Mounting Angle: 90-90°
- Halogen Free: Yes
- Dimensions (H x L x W): 79mm x 93mm x 19mm
- Weight: 0.5 kg
Key Features
- Made from high-quality stainless steel 316L (1.4401) for superior corrosion resistance
- Suitable for cable support systems with widths between 50-100 mm
- Safe working load of 1000 N according to IEC 61537
- Operating temperature range from -20°C to 120°C
- Halogen free material
- Can be used for both horizontal and vertical mounting
- Angle fixed at 90-90° for secure mounting
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Horizontal or vertical mounting of cable tray runs
- Supports cable trays with widths from 50 to 100 mm
- Industrial and commercial cable management systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from durable stainless steel 316L, reducing the need for frequent replacements and minimizing waste
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Large Universal Mounting Plate is available for immediate purchase, ideal for industrial and commercial cable management applications.
