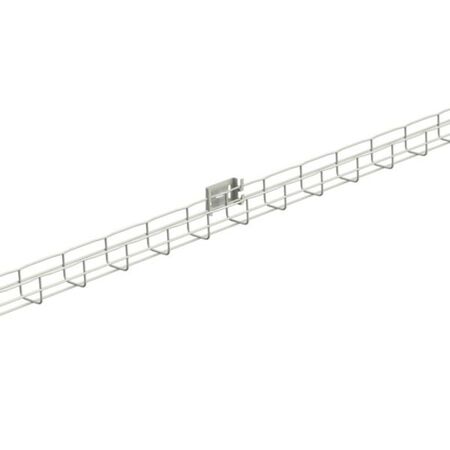

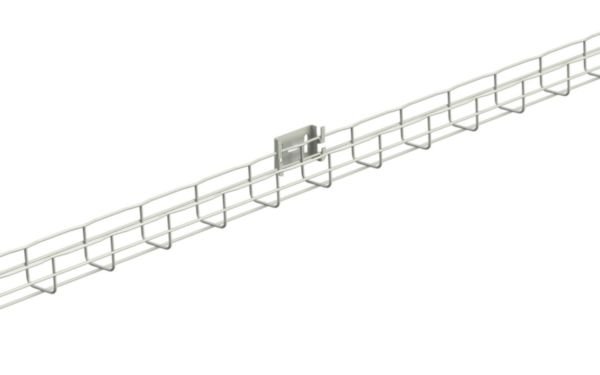

Cablofil 316L Stainless Steel Wire Cable Tray Mounting Plate | Corrosion Resistant | 1000 N Safe Working Load | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Small Universal Mounting Plate is designed for reliable cable management in industrial and commercial settings. Made from high-quality stainless steel for corrosion resistance, it supports cable systems with widths from 50 to 100 mm and has a safe working load of 1000 N. Ideal for both horizontal and vertical mounting, this plate ensures durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel 316L (1.4401)
- Length: 101 mm
- Width: 19 mm
- Height: 50 mm
- Suitable for cable support system width: 50-100 mm
- Angle: 90-90°
- Safe working load: 1000 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Surface protection: Other
- Dimensions (H x L x W): 50mm x 101mm x 19mm
- Weight: 0.2 kg
Key Features
- Made from high-quality stainless steel 316L (1.4401) for corrosion resistance
- Suitable for cable support system widths from 50 to 100 mm
- Safe working load of 1000 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Can be used for both horizontal and vertical mounting
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Horizontal or vertical mounting of cable tray runs
- Supports cable management systems in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from durable stainless steel 316L which extends product life and reduces replacement frequency
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Small Universal Mounting Plate is available for immediate purchase, ideal for industrial and commercial cable management applications.
