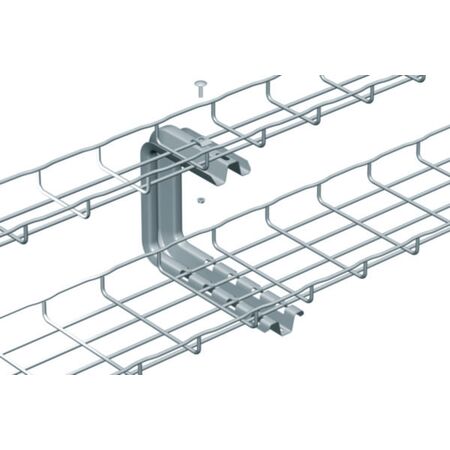

Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm | 1000 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable support in industrial and commercial settings. With a load-bearing capacity of 1000 N and a screwable mounting system, it ensures secure installation for wire mesh trays. Ideal for roof and ceiling cable management, this durable arm is built to withstand corrosion, making it a reliable choice for electrical infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm | 1000 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556314
Alternatively Known As: Stainless Steel Cable Tray Support Arm, Roof Cantilever Cable Tray Bracket, Cable Tray Roof Support Arm
Technical Specifications
- Material: 316L Stainless Steel
- Load Bearing Capacity: 1000 N
- Suitable Cable Support System Height: 100 mm
- Tray Mounting: Screwable
- Compatible with Wire Mesh Tray: Yes
- Compatible with Cable Ladder: No
- Compatible with Cable Tray: No
- Surface Protection: Stainless steel natural finish
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 1.2 kg
Key Features
- Made from durable 316L stainless steel for corrosion resistance
- Slot and tab design for easy fixing and installation
- Screwable tray mounting for secure attachment
- Load bearing capacity of 1000 N
- Suitable for wire mesh trays with cable support system height of 100-100 mm
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure secure and compliant mounting.
Applications
- Cable support systems in industrial and commercial buildings
- Roof and ceiling cable management installations
- Wall mounting for cable trays in electrical infrastructure
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from stainless steel which is recyclable and durable, reducing replacement frequency
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Roof Cantilever Arm 150mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
