Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil

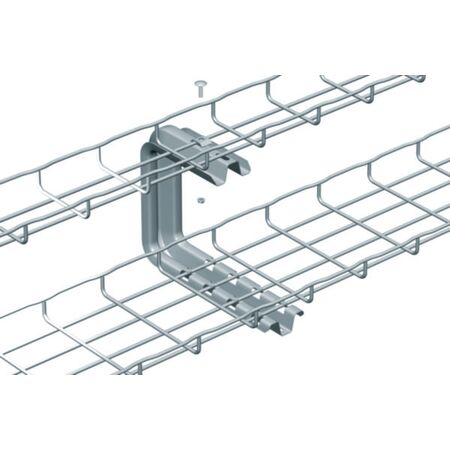

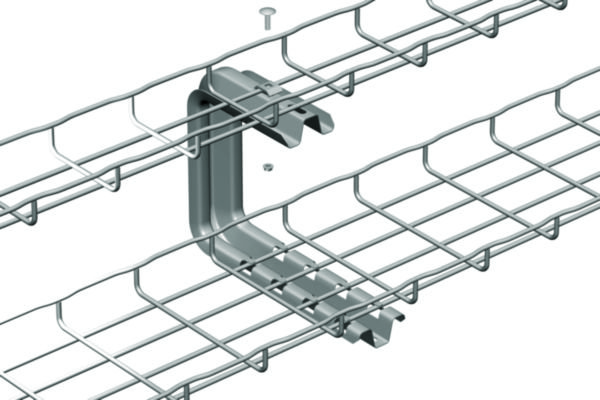

The Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable support systems in industrial and commercial settings. With a load-bearing capacity of 1200 N and a screwable mounting design, it ensures secure installation and compatibility with wire mesh trays up to 100 mm in height. Ideal for roof and ceiling cable management, this durable arm offers long-lasting performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556304
Alternatively Known As: Stainless Steel Cable Tray Cantilever Arm, Roof Cantilever Bracket, Cable Tray Support Arm
Technical Specifications
- Material: 316L Stainless Steel
- Load Bearing Capacity: 1200 N
- Suitable Cable Support System Height: 100 mm
- Tray Mounting: Screwable
- Compatible with Wire Mesh Tray: Yes
- Compatible with Cable Ladder: No
- Compatible with Cable Tray: No
- Surface Protection: Stainless Steel natural finish
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 1.2 kg
Key Features
- Made from high-quality 316L stainless steel for corrosion resistance
- Slot and tab design for easy fixing and installation
- Screwable tray mounting for secure attachment
- Load bearing capacity of 1200 N
- Suitable for wire mesh trays with a height of 100 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure fixing and compliance with structural standards.
Applications
- Cable support systems in industrial and commercial buildings
- Roof and ceiling cable management installations
- Wall mounting for cable trays in harsh environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Profile Roof Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
