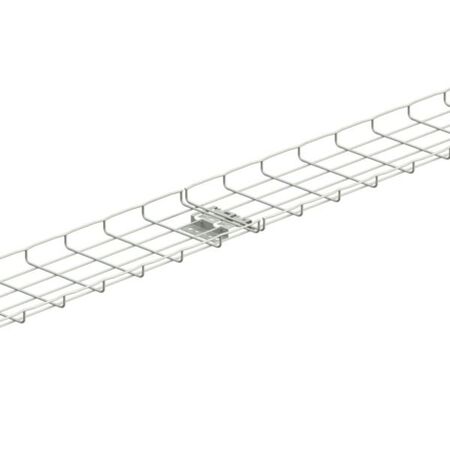

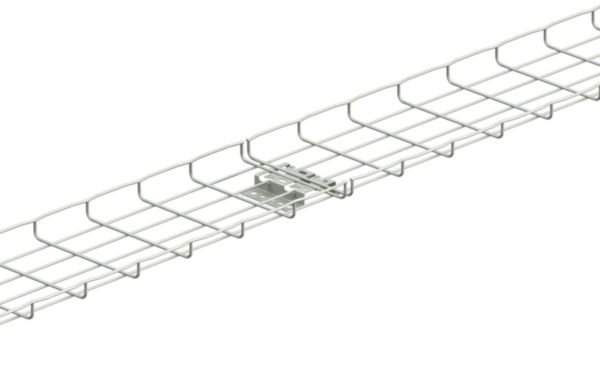

Cablofil 316L Stainless Steel Wire Cable Tray Stand-Off Bracket | Pickled Finish | Screwless Connector | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Stand-Off Bracket is designed for reliable support in cable management systems. Made from high-quality 316L stainless steel with a pickled finish, it features a screwless connector for secure attachment. Ideal for wall and floor mounting of wire mesh trays, this bracket supports widths from 50 to 200 mm and heights of 25 mm, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 316L Stainless Steel, pickled finish
- Length: 98 mm
- Suitable for wire mesh trays only, not for cable ladders or trays
- Suitable cable support system width: 50-200 mm
- Suitable cable support system height: 25 mm
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Screwless connector type
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Halogen free
- Dimensions (H x L x W): 25mm x 100mm x 15mm
- Weight: 0.2 kg
Key Features
- Made from high-quality 316L stainless steel with pickled finish
- Slot and tab design for easy fixing and installation
- Screwless connector for secure attachment
- Halogen free material
- Suitable for wire mesh trays with widths from 50 to 200 mm and heights of 25 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical installation standards.
Applications
- Wall and floor mounting for wire mesh cable trays
- Supports cable management systems in industrial and commercial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Halogen free materials contribute to safer environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Stand-Off Bracket 15mm x 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
