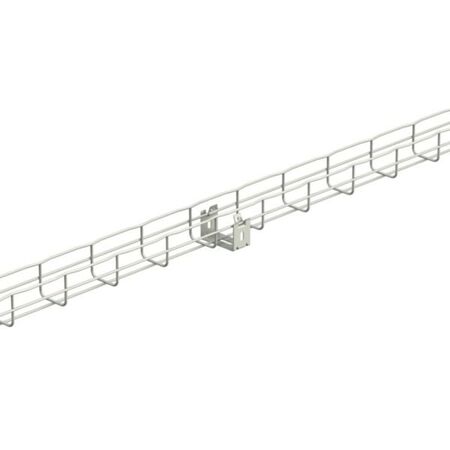

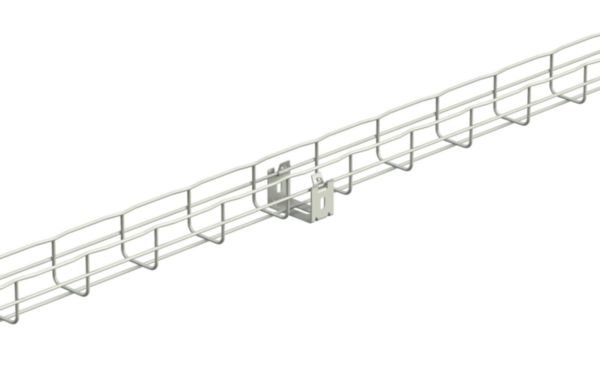

Cablofil 316L Stainless Steel Wire Cable Tray Support Cradle | 50mm Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Support Cradle is designed for 50mm wide wire mesh trays, offering a robust load capacity of 120N. Ideal for industrial and commercial cable management, this cradle features a screwable mounting design for secure installation, ensuring compliance with safety standards and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Support Cradle | 50mm Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM586044
Alternatively Known As: Cable Tray Support Bracket, Stainless Steel Cable Tray Cradle, Wire Mesh Tray Support, Cable Tray Mounting Bracket
Technical Specifications
- Material: 316L Stainless Steel
- Suitable Tray Width: 50 mm
- Suitable Tray Depths: 30 mm and 54 mm
- Load Bearing Capacity: 120 N
- Tray Mounting: Screwable
- Suitable for Wire Mesh Tray: Yes
- Suitable for Cable Ladder: No
- Suitable for Cable Tray: No
- Circuit Integrity: No
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Made from durable 316L stainless steel for corrosion resistance
- Designed specifically for 50 mm tray width and 30 or 54 mm depths
- Face out bracket (C-bracket) design
- Screwable tray mounting for secure installation
- Load bearing capacity of 120 N
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Supports for 50 mm wide wire mesh cable trays
- Suitable for cable support systems with heights of 50-50 mm
- Used in industrial and commercial cable management installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from stainless steel for long service life and recyclability
- Corrosion resistance reduces need for replacement and waste
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Support Cradle 50mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
