Cablofil 316L Stainless Steel Wire Cable Tray Support Rail | 3m Length | S-Profile Shape | 1 kN Load Capacity | @Each of 1 | by Cablofil

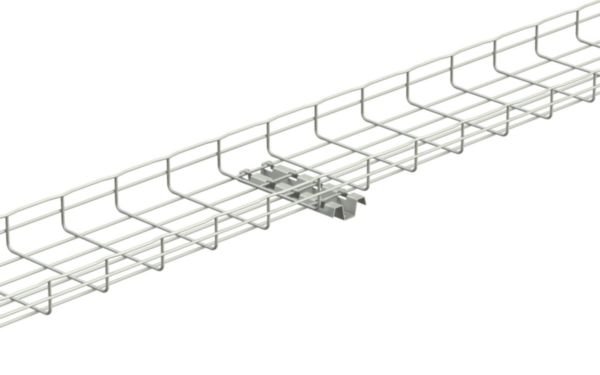

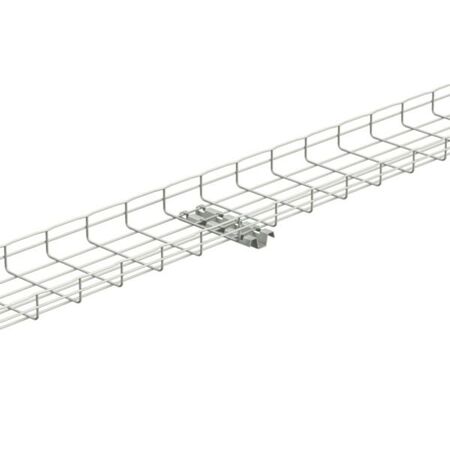

The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail is designed for robust cable management in industrial and commercial settings. With a durable S-profile shape and a load-bearing capacity of 1 kN, it ensures secure support for your cables. Ideal for floor, wall, or trapeze mounting, this rail is made from halogen-free stainless steel, providing excellent corrosion resistance and a long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Support Rail | 3m Length | S-Profile Shape | 1 kN Load Capacity | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM013034
Alternatively Known As: Stainless Steel Cable Tray Support Rail, Wire Mesh Cable Tray Support, Cable Tray Mounting Rail
Technical Specifications
- Length: 2994 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Model: Singular profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- With toothing: No
- Snap-off: No
- Load bearing capacity: 1 kN
- Suitable for circuit integrity: No
- Material: Stainless steel 316L
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 2994mm x 68mm
- Weight: 3.5 kg
Key Features
- Constructed from durable 316L stainless steel for corrosion resistance
- S-profile shape with back perforation for easy cable attachment
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural requirements.
Applications
- Floor mounting for cable management
- Wall mounting for cable support
- Trapeze mounting in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable stainless steel material
- Long service life reduces need for replacement and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail 3m is available for immediate purchase, ideal for industrial, commercial, and infrastructure cable management applications.
