Cablofil 316L Stainless Steel Wire Cable Tray Support Rail | Corrosion Resistant | 1 kN Load Capacity | @Each of 1 | by Cablofil

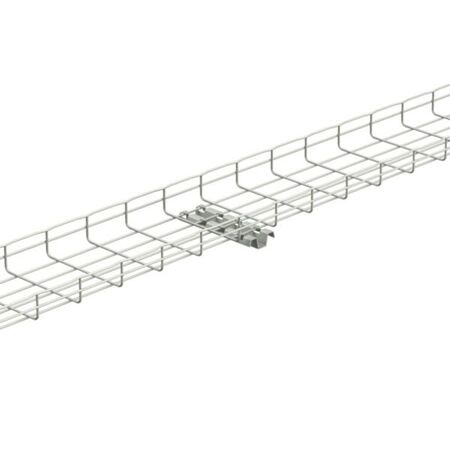

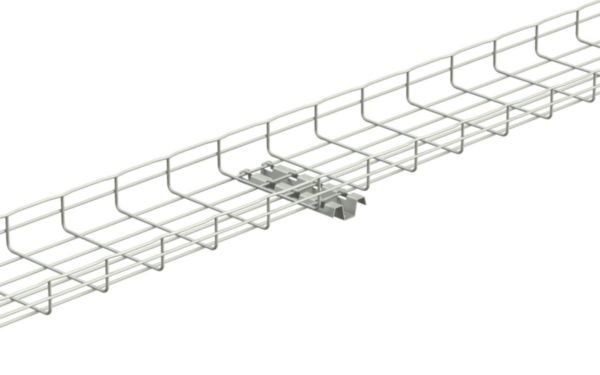

The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail is designed for robust cable management, featuring a corrosion-resistant construction and a load-bearing capacity of 1 kN. Ideal for both floor and wall mounting, this support rail ensures secure installation in industrial and commercial settings, making it a reliable choice for your cable management needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray Support Rail | Corrosion Resistant | 1 kN Load Capacity | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM013304
Alternatively Known As: Stainless Steel Cable Tray Support Rail, Wire Cable Tray Support, Cable Tray Mounting Rail
Technical Specifications
- Length: 294 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- Load bearing capacity: 1 kN
- Operating temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 294mm x 68mm
- Weight: 0.5 kg
Key Features
- Constructed from 316L stainless steel for corrosion resistance
- S-profile shape with back perforation
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
- Material thickness of 1.5 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Floor mounting for cable trays
- Wall mounting for cable trays
- Trapeze mounting for cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail 300mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
