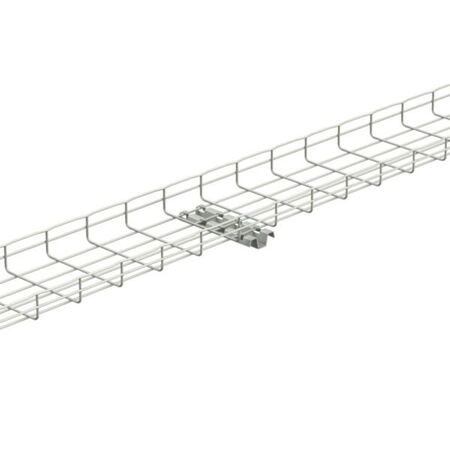

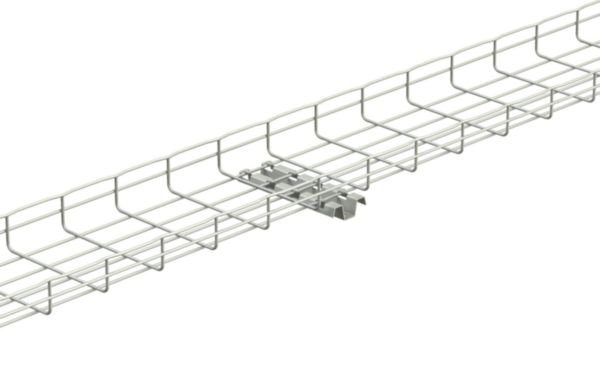

Cablofil 316L Stainless Steel Wire Cable Tray Support Rail | Corrosion Resistant | S-Profile Design | 1 kN Load Capacity | @EA of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail is designed for robust cable management in industrial and commercial settings. With a corrosion-resistant construction and a load-bearing capacity of 1 kN, this support rail features an S-profile shape for easy installation and back perforation for efficient cable routing. Ideal for floor, wall, or trapeze mounting, it ensures compliance with safety standards while providing durability and environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Length: 1994 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- Load bearing capacity: 1 kN
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 1994mm x 68mm
- Weight: 2.5 kg
Key Features
- Constructed from high-quality 316L stainless steel for corrosion resistance
- S-profile shape with back perforation for easy cable management
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems to ensure secure mounting and compliance with safety standards.
Applications
- Floor mounting for cable trays
- Wall mounting for cable trays
- Trapeze mounting for cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency
- Halogen free material contributes to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray Support Rail 2m is available for immediate purchase, ideal for industrial and commercial cable management applications.
