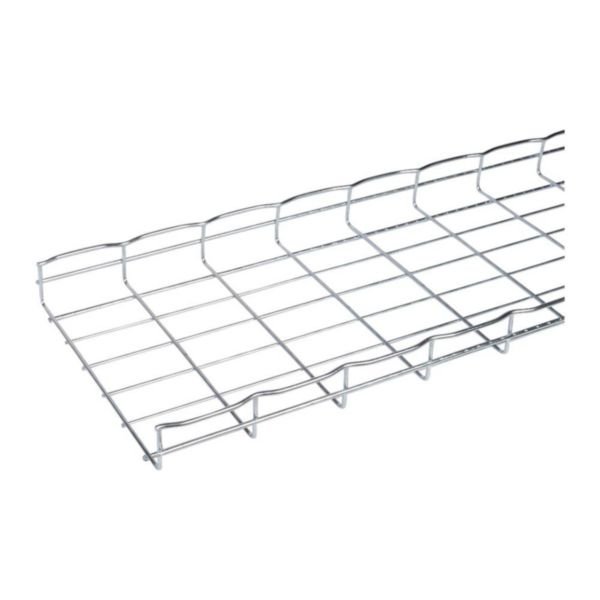

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and unique T-welded safety edge for enhanced protection. Ideal for corrosive environments, this tray ensures natural ventilation and complies with AS/NZS 1170 standards, making it perfect for commercial and infrastructure wiring installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000104
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 300 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 15453 mm²
- Surface protection: Pickled and passivated
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Weight: 1.7145 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 300mm
- Weight: 5.14 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated surface protection for corrosion resistance
- Made from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and structural mounting to ensure safety and compliance.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product lifespan reducing replacement waste
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 300mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
