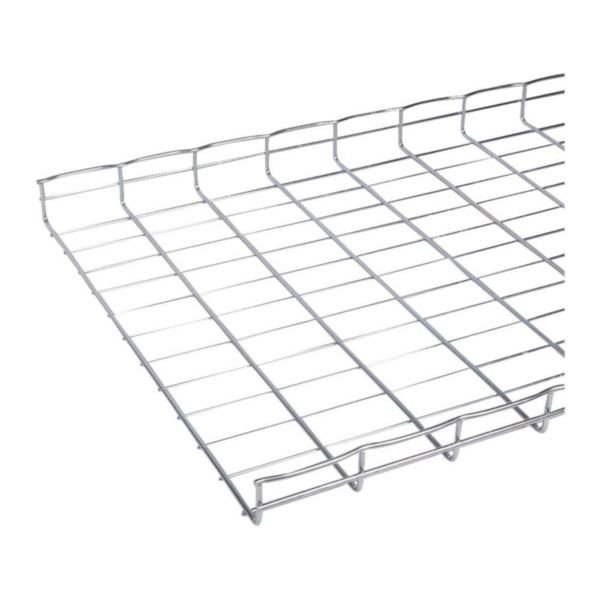

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a robust U-shape profile and unique T-welded safety edge for enhanced protection. With pickled and passivated surface treatment, it offers excellent corrosion resistance, making it ideal for commercial and infrastructure wiring installations in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000404
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Industrial Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 600 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 30633 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 3.4 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 600mm
- Weight: 10.2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated surface protection for corrosion resistance
- Constructed from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel 316L which is highly durable and recyclable
- Corrosion resistance extends product life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 600mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
